LINKS DT

DepthtrackingWITS0supportedWITSML™ready
Target Application

Land rigs, Offshore rigs, Work-over rigs.

Description

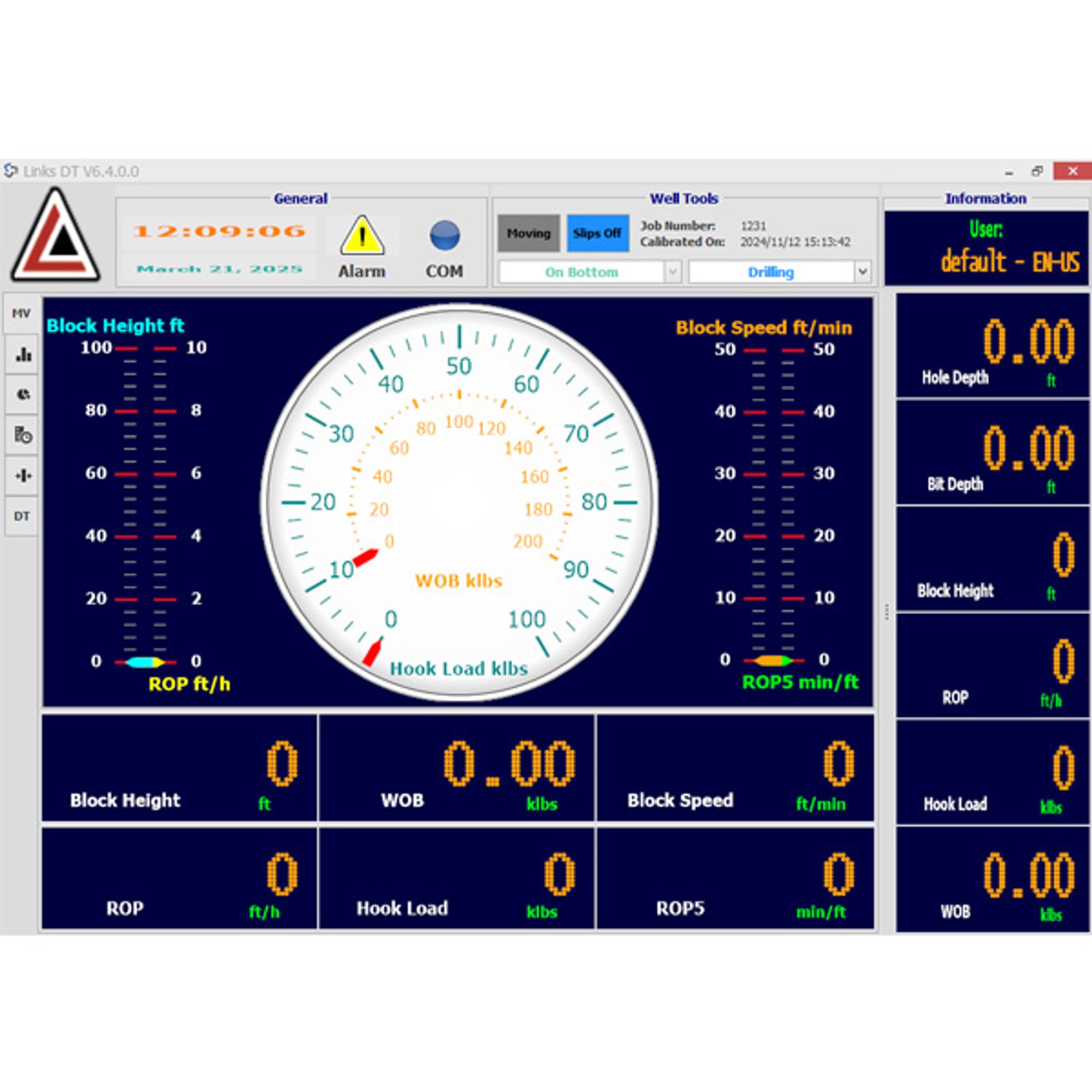

Laversab LINKS DT is a depth tracking software application used to control the Laversab Depth Tracking board, which can be added to any Laversab RFD.

LINKS DT is used to configure and calibrate depth sensors – including encoder, hookload, and slips – to get basic depth parameters while drilling. This is especially useful when an EDR is not available to service companies.

Depth data is formatted as WITS0 and/or WITSML™. It can be stored locally or used by any external applications.

LINKS DT can operate as either as the main application or in the background passing data to another drilling application.

Request quote→Request service→
Technical Reference

Full specs.
Every detail.

APPLICATION SOFTWARE

Software
Formats supported: WITS 0, ASCII, Excel, LAS 2.0, LAS 3.0, WITSML™
WITSML™ versions: 1.3.1 & 1.4.1
Database update: 0.25 sec to 5 sec (user configurable)
Depth recording interval: 0.1 ft or 0.1m
Formulas: User-defined formulas
Reporting: Depth vs MWD & LWD
Reporting: Gamma Logging
Reporting: Resistivity Logging
Reporting: Relogging functionality

HARDWARE

Depth Tracker Board
Product Type: Depth Tracker PCB for Laversab RFDs
Certification: ATEX / IECEx Zone 2 (System) & Zone 1 (Sensors)
Sensor I/O: 1x Encoder [Ex ib]
Sensor I/O: 1x Hook load [Ex ib]
Sensor I/O: 1x Manual Slips [Ex ib]
Sensor I/O: 1x 4-20mA channel [Ex ib]
Sensors: Can be provided by Laversab
Cables: Can be provided by Laversab; Custom lengths
Variables: 300+ variables per rig

SYSTEM INFO

System
Application Type: Depth Tracker software for Laversab DT board
Operating System: Windows 7 or later (64-bit)
Framework: .NET
Accessibility: Anytime
Languages: English & Spanish

SYSTEM

Software
Formats
WITS 0, ASCII, Excel, LAS 2.0, LAS 3.0, WITSML™
WITSML™
1.3.1 & 1.4.1
Database
0.25 sec to 5 sec, user configurable
Hardware
Product Type
Depth Tracker PCB for Laversab RFDs
Certification
ATEX / IECEx Zone 2 System & Zone 1 Sensors
Variables
300+ variables per rig
System
Application
Depth Tracker software for Laversab DT board
OS
Windows 7 or later (64-bit)
Languages
English & Spanish
