Laversab
LINKS Collector
1 / 3

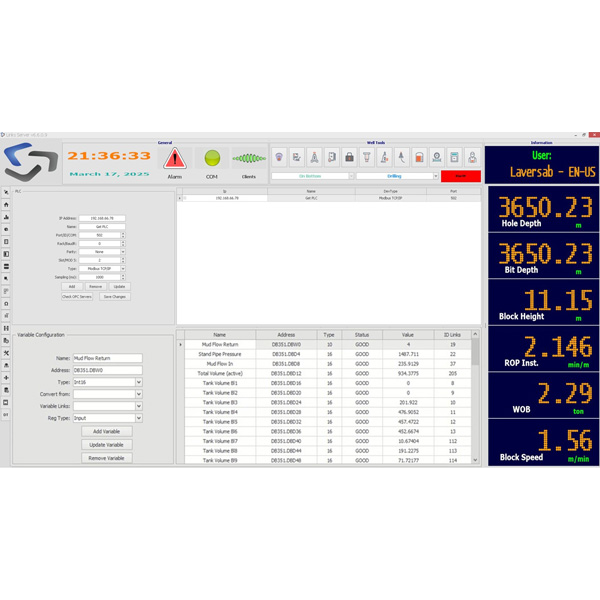

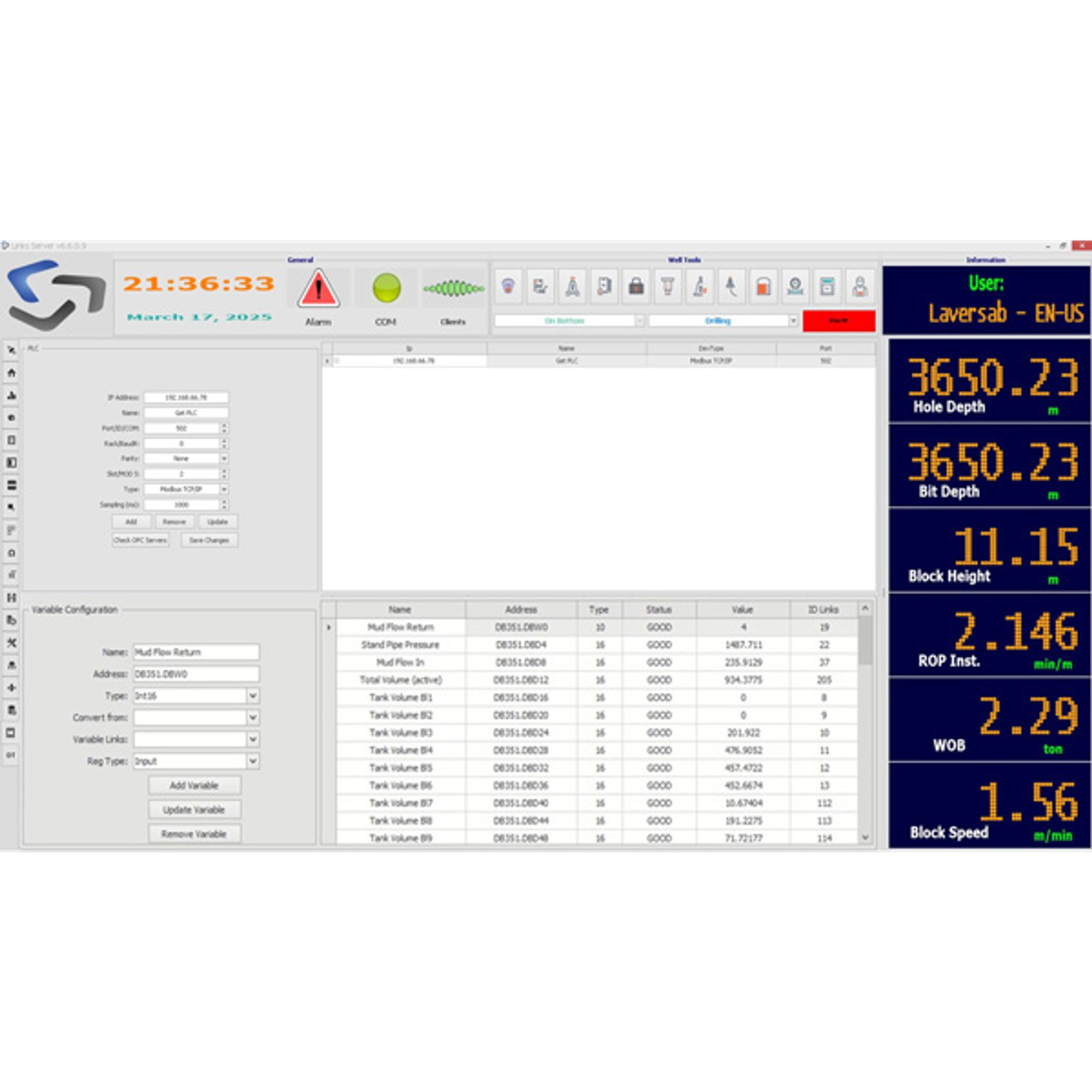

LINKS Collector

WITS0inputWITSML™output300+variables
Target Application

Land rigs, Offshore rigs, Work-over rigs.

Description

Laversab LINKS Collector can convert all drilling data to WITSML™.

WITSML™ versions 1.3.1 & 1.4.1 are currently supported.

LINKS Collector can handle most data formats — from WITS0 to proprietary formats used by equipment companies.

LINKS Collector is a low-footprint software that can run on any rig system. It can also act as a data aggregator by correlating data from multiple rig sources.

Request quote→Request service→
Technical Reference

Full specs.
Every detail.

DATA

Data Support
Formats supported: WITS 0, ASCII, Excel, LAS 2.0, LAS 3.0
WITSML™ versions: 1.3.1 & 1.4.1
Database update: 0.25 sec to 5 sec (user configurable)
Depth recording interval: 0.1 ft or 0.1m
Formulas: User-defined formulas
Variables: 300+ variables per rig

SYSTEM INFO

System
Application Type: On-Rig Data Aggregator
Operating System: Windows 7 or later (64-bit)
Framework: .NET
Accessibility: Anytime
Languages: English & Spanish

SYSTEM

Data
Data
WITS 0, ASCII, Excel, LAS 2.0, LAS 3.0
WITSML™
1.3.1 & 1.4.1
Variables
300+ variables per rig
System
Application
On-Rig Data Aggregator
OS
Windows 7 or later (64-bit)
Framework
.NET
Access
Accessibility
Anytime
Languages
English & Spanish
Update
0.25 sec to 5 sec, user configurable
