Wellnode WITSML™ DATA ANALYZER

Real-timevisualizationWITSML™compatibleRTOCready
Target Application

Real-time Operating Center, Remote monitoring.

Description

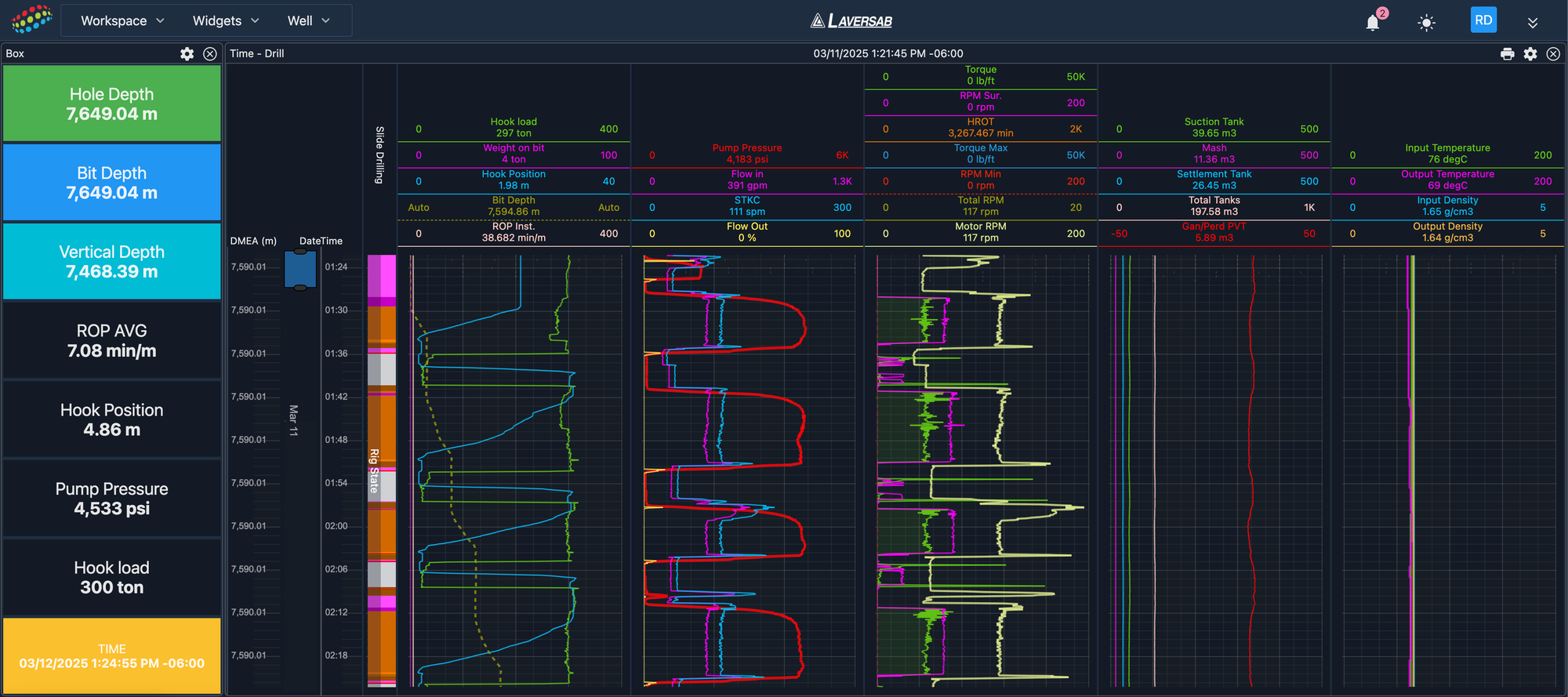

Wellnode is a dashboard-based visualization and analysis application built to monitor one or multiple wells in real-time. It supports WITSML™ and ETP™ data coming from any source – EDR, Mudlogging unit, Directional Drilling, Managed Pressure Drilling, Logging while Drilling, among other.

Users can create dynamic dashboards in a Real-time Operating Center (RTOC) to closely manage their wells, gain insights, and create reports.

Capabilities include: Real-Time WITSML™ data visualization, support for WITSML™ v 1.3.1.1 & 1.4.1.1, customizable dashboards, KPI dashboard, alarms module, time & depth-based exportable reports, wellbore visualization, operational limits, lithology, engineering analysis, and predictions.

Request quote→Request service→
Technical Reference

Full specs.
Every detail.

APPLICATION INFO

Dashboards
Pre-defined template
User-defined and editable
Access
Real-time & Historical
Multiple well access simultaneously
Alarms
Visual
Email
Configurable
Wellbore Visualization
2-D & 3-D
MWD/LWD Correlation
Reports
Time-based or Depth-based
Quick Report PDF
Detailed Report - Excel or PDF
Modules
Operational Limits
KPIs
Lithology
Engineering
Predictions
Units
Metric & Imperial; configurable per variable

SYSTEM INFO

Platform
Software type: Web Platform
Classification
Data visualization in Real-Time
Lifecycle Status
In Production
Language
English & Spanish
Web Browsers Supported
Chrome (recommended), Edge, Firefox, Safari
Device Compatibility
Desktop and laptops computers
Protocol Compatibility
ETP v1.1, WITSML™ v1.4.1.1
WITSML™ v1.3.1.1

SYSTEM

Platform
Software type
Web Platform
Web Platform
Data visualization in Real-Time
Lifecycle status
In Production
Compatibility
Browsers
Chrome, Edge, Firefox, Safari
Devices
Desktop and laptops computers
Language
English & Spanish
Protocols
ETP
v1.1
WITSML™
v1.4.1.1
WITSML™
v1.3.1.1
