Model 3200-DDU

Zone-1certified10.4"display11 lbsweight
Target Application

MWD Surface Systems.

Description

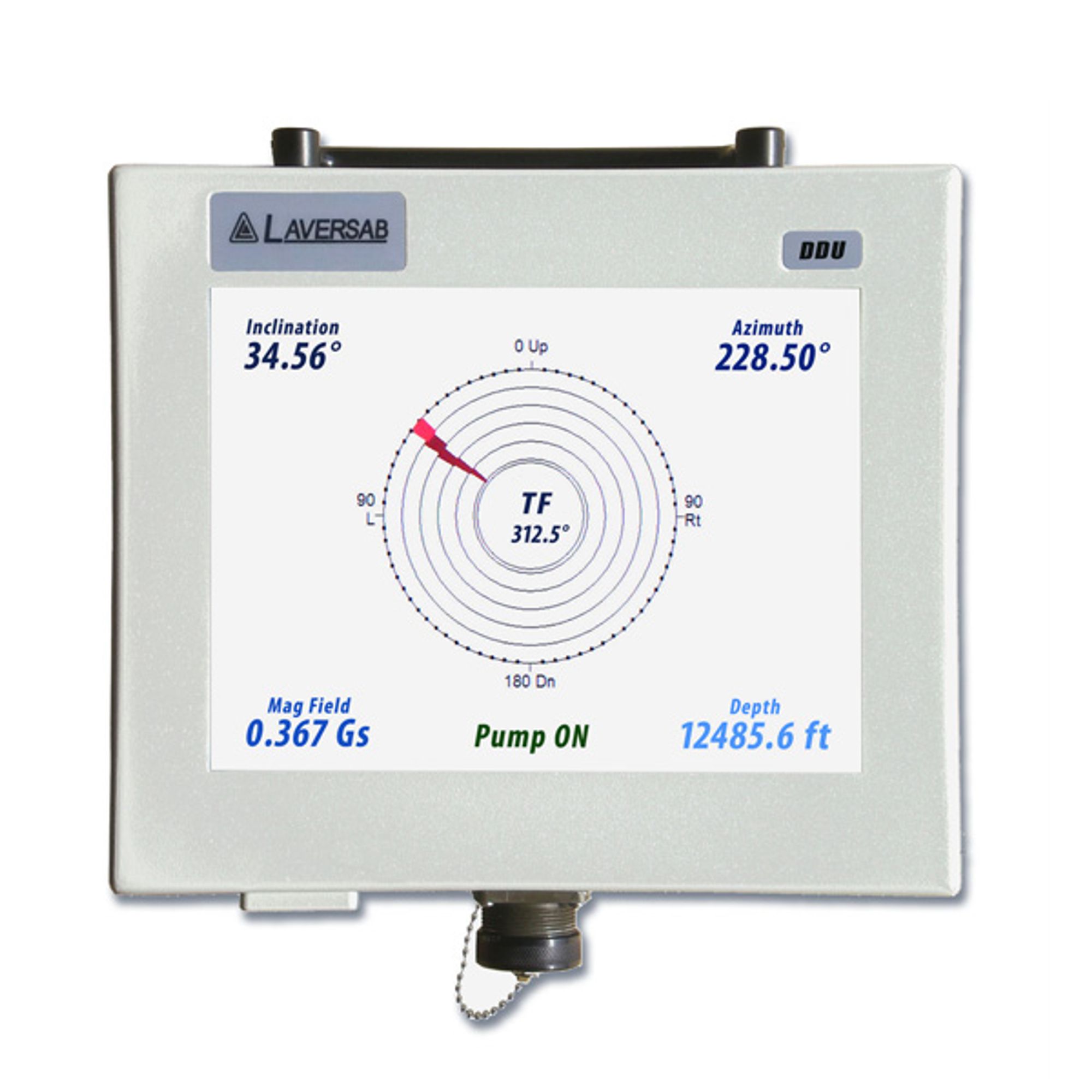

Laversab Model 3200 is a Zone-1 certified Driller's Display Unit (DDU). This ultra-compact unit is fully sealed and ready to be used on the rig. It typically pairs with a Decoder that resides in the safe area. The Model 3200 displays critical MWD telemetry information including ToolFace, Inclination, Azimuth and more; the 3200 can also be customized to display WITS0 data. The ATEX/IECEx Zone 1 certifications make this unit suitable for both Offshore and Land deployment.

Request quote→Request service→
Technical Reference

Full specs.
Every detail.

SYSTEM CONFIGURATION

Core Functions
Product Type: Display Unit
Certifications: ATEX Zone I, IIb
Display: 10.4" Transflective sunlight readable LCD, 640 x 480, with LED backlighting
Brightness: Sunlight readable with LED backlight
Processor: ARM 9 Core Processor @ 190 MHz
Operating System: Linux Embedded or Windows CE
Data Storage: 64 MB Flash
Memory: 64 MB SDRAM
Input / Output
USB ports: 1x Protected [Ex ic]
Serial ports: RS 232; RS 485 available
LAN: 1 channel available
Current Loop: 1 channel available

APPLICATION SOFTWARE

Software
Laversab Software: Pre-loaded Directional Drilling SW

ENVIRONMENTAL

Environmental Specs
Operating temp: -20°C to +50°C
Storage temp: -40°C to +75°C
Humidity: 5 to 100%

PHYSICAL

Physical Specs
Power: 3-25VDC, 5W max
Sealing: NEMA-4 on all six sides
Weight: 11 lbs
Dimensions: 10.75"(w) 9.25"(h) 2.25"(d)
Mounting: Hanger mount
Mounting: Pole mount
Operating Shock: 50 G, 11 ms half-sine
Operating Vibration: 1.5 G, RMS, 5 to 500 Hz

SYSTEM

Display
Display
10.4" transflective LCD
Brightness
Sunlight readable with LED backlight
Certifications
ATEX Zone-1, lib locations
Power & Protection
Power
3-25VDC, 5W max
Sealing
NEMA-4 on all six sides
Operating temp
-20°C to +50°C
Physical
Weight
11 lbs
Dimensions
10.75"(w) 9.25"(h) 2.25"(d)
Mounting
Hanger mount, Pole mount
