Laversab
Model 2854-15"
1 / 2

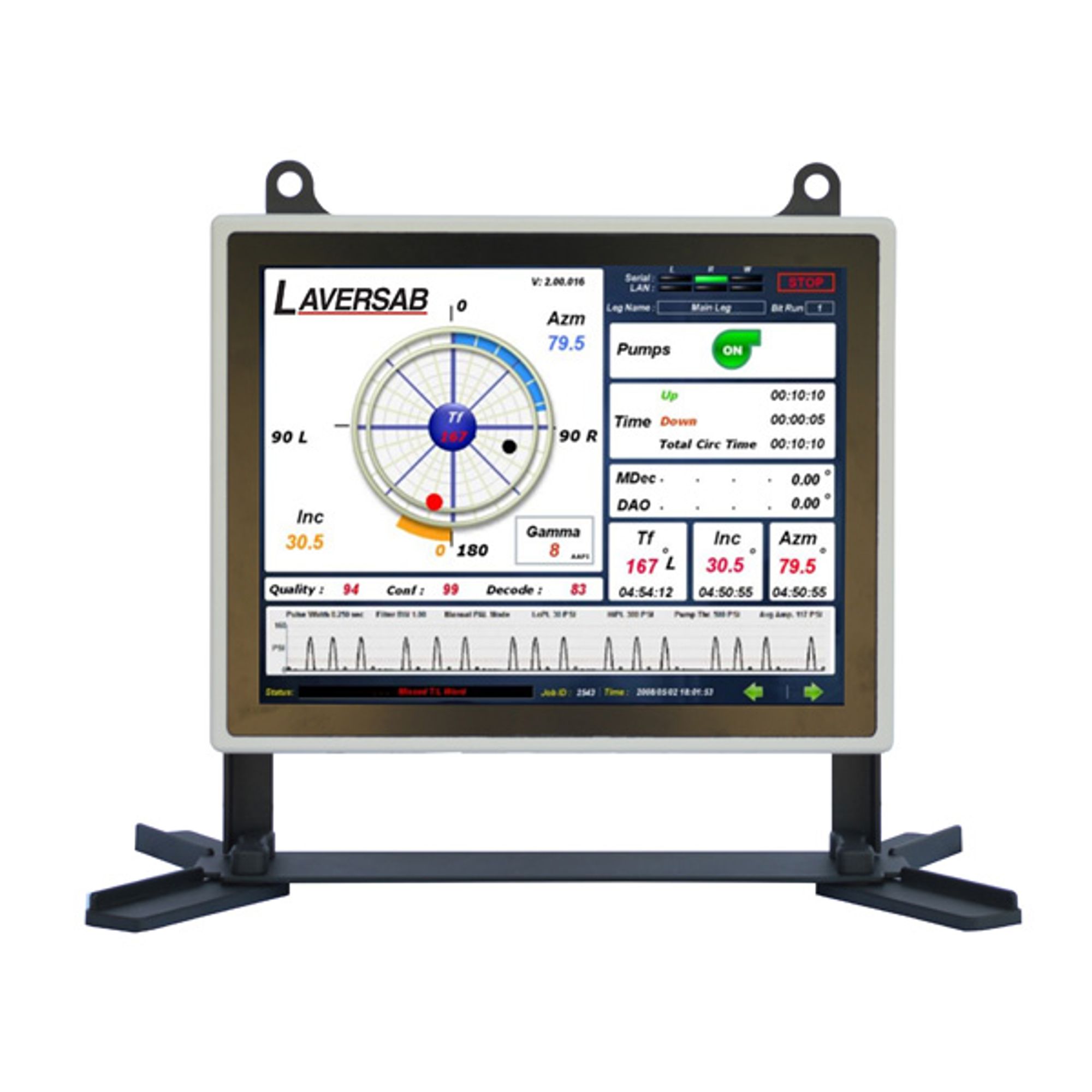

Model 2854-15"

15"displayZone-2certifiedIP66sealed
Target Application

MWD Surface Systems, Rig Floor Displays, HazLoc Computers, Truck-mounted HMI.

Description

The Model 2854 is a Zone-2 workstation ideal for applications on the oil rig, in vehicles, or in safety-critical environments. This 15″ RFD features standard I/O ports to interface easily with other systems. The unit is configurable - certification-level, performance, optional digitizer, and optional depth tracker. The Model 2854 is designed to interface with sensors and communicate with other systems.

Build Your System→
Request quote→Request service→
Technical Reference

Full specs.
Every detail.

SYSTEM CONFIGURATION

Core Functions
Product Type: PC Workstation
Certifications: ATEX / IECEx Zone-2
Embedded Capabilities: DAQ/Digitizer for MWD Depth Tracker
Display: 15" capacitive-touch
Resolution: 1024 × 768
Brightness: 1000 nits; adjustable
Configurable Functions
Processor (Coming Soon): Intel® Core™ Ultra 7 165H, 16-Core, 24M Cache, 1.4GHz (5.0GHz)
Processor (Coming Soon: Intel® Core™ Ultra 7 155U, 12-Core, 12M Cache, 1.7GHz (4.8GHz)
Operating System: Windows 10/11 Pro (or other)
Data Storage: 512 GB to 2 TB
Memory: 32 GB to 64 GB DDR5 RAM (Coming Soon)
Wireless Radio: Wi-Fi radio (standard); 2.4 GHz or 900 MHz spread-spectrum
Input / Output
# Pressure Inputs: Up to 2
Pressure Connectors: 19-pin, 6-pin, or 3-pin
USB ports: 2x USB3.1, 2x USB2.0 [Ex ic]
Serial ports: 2x RS232 [Ex ic], 2x RS422/485 [Ex ic]
LAN: 1× Gbit PoE (Power over Ethernet)

APPLICATION SOFTWARE

Software
Laversab Software: LINKS DT (Depth Tracker)
Laversab Software: Digitizer API
User Software: User MWD software or other software can be pre-loaded or installed

ENVIRONMENTAL

Environmental Specs
Operating temp: -40°C to +60°C
Storage temp: -40°C to +75°C
Humidity: 5 to 100%

PHYSICAL

Physical Specs
Power: 90-260 VAC, 47-63 Hz, 150 VA
Sealing: IP66 on all six sides
Weight: 16 lbs
Dimensions: 14"(w) 11"(h) 3.3"(d)
Operating Shock: 50 G, 11 ms half-sine
Operating Vibration: 3.0 G, RMS, 5 to 500 Hz
Mounting: Hanger or Panel mount, VESA-100, Desktop stand

SYSTEM

Display
Display
15" capacitive-touch
Resolution
1024 × 768
Brightness
1000 nits; adjustable
Power & Protection
Power
90-260 VAC, 47-63 Hz, 150 VA
Sealing
IP66 on all six sides
Certifications
ATEX / IECEx Zone-2
Physical
Weight
16 lbs
Dimensions
14"(w) 11"(h) 3.3"(d)
Mounting
Hanger or Panel mount, VESA-100, Desktop stand
