LINKS EDR

EDRsoftwareWITS0supportedWITSML™ready
Target Application

Land rigs, Offshore rigs, Work-over rigs.

Description

Laversab LINKS EDR is a rig-ready software package built for the Laversab EDR as well as 3rd party EDRs. It is responsible for acquiring surface parameters, formatting data into WITS0 or WITSML™, and transmitting or storing the data.

LINKS EDR calculates both time-based and depth-based measurements.

LINKS EDR is responsible for making real-time surface parameters available to the driller, operator, and offsite stakeholders.

LINKS EDR has modules for Tour Sheets, Daily Reports, Lithology analysis, Swab, Well Planning, and Ton-Mile calculations.

LINKS EDR is available for daily rent as well as purchase. License access and entitlements can be managed online.

Request quote→Request service→
Technical Reference

Full specs.
Every detail.

FUNCTIONS

Modules
Lithology, Swab Analysis
Tools
Video Surveillance
Chat
Reports
On-demand Time-based or Depth-based
Daily & Tour Sheet
KPI Report
Wellbore Configuration
Drill String Config
Pipe Tally
Tanks Config
Pumps Config
Bit Record
Mud Record
Casing Record
Operations and Crew Record
Visualizations

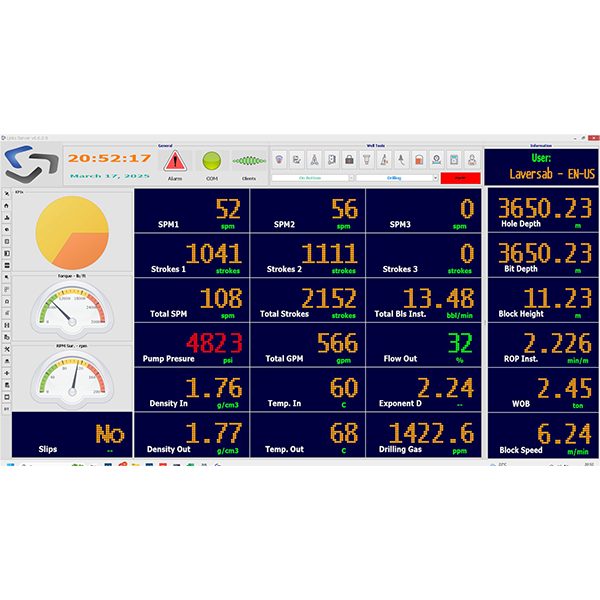

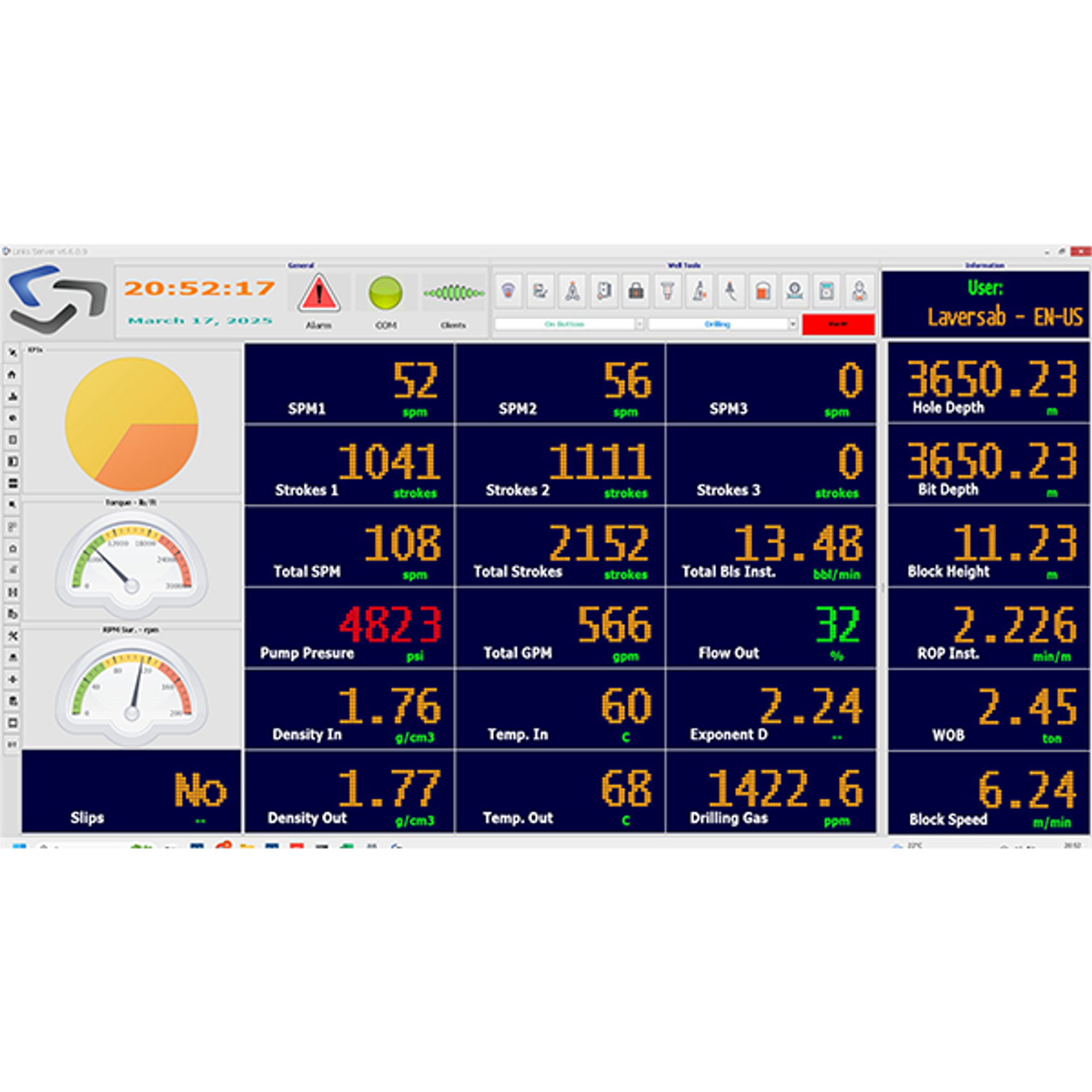

Dashboard view of key parameters
Numerics, Gauges & functional indicators
Line, Bar, Pie charts
3-D trajectory & Bird view
Hydraulics & Riser Compensation
Dynamic updates in real-time
Alarms
Hardware & user-defined alarms supported
Languages
English & Spanish
Variables
300+ variables per rig

DATA

Data Support
Formats supported: WITS 0, ASCII, Excel, LAS 2.0, LAS 3.0, WITSML™
Protocols: Modbus TCP/IP, Modbus Serial, OPC, PLCs (Siemens & Rockwell)
Display update rate: < 1 sec
Database update: 0.25 sec to 5 sec (user configurable)
Depth recording interval: 0.1 ft or 0.1m
Formulas: User-defined formulas

SYSTEM INFO

System
Application Type: On-Rig Software
Operating System: Windows 7 or later (64-bit)
Framework: .NET
Accessibility: Anytime

SYSTEM

Functions
Modules
Lithology, Swab Analysis
Tools
Video Surveillance, Chat
Reports
Daily, Tour Sheet, KPI, Time-based, Depth-based
Data
Formats
WITS 0, ASCII, Excel, LAS 2.0, LAS 3.0, WITSML™
Protocols
Modbus TCP/IP, Modbus Serial, OPC, Siemens & Rockwell PLCs
Update
Display < 1 sec, Database 0.25 sec to 5 sec
System
Application
On-Rig Software
OS
Windows 7 or later (64-bit)
Framework
.NET
