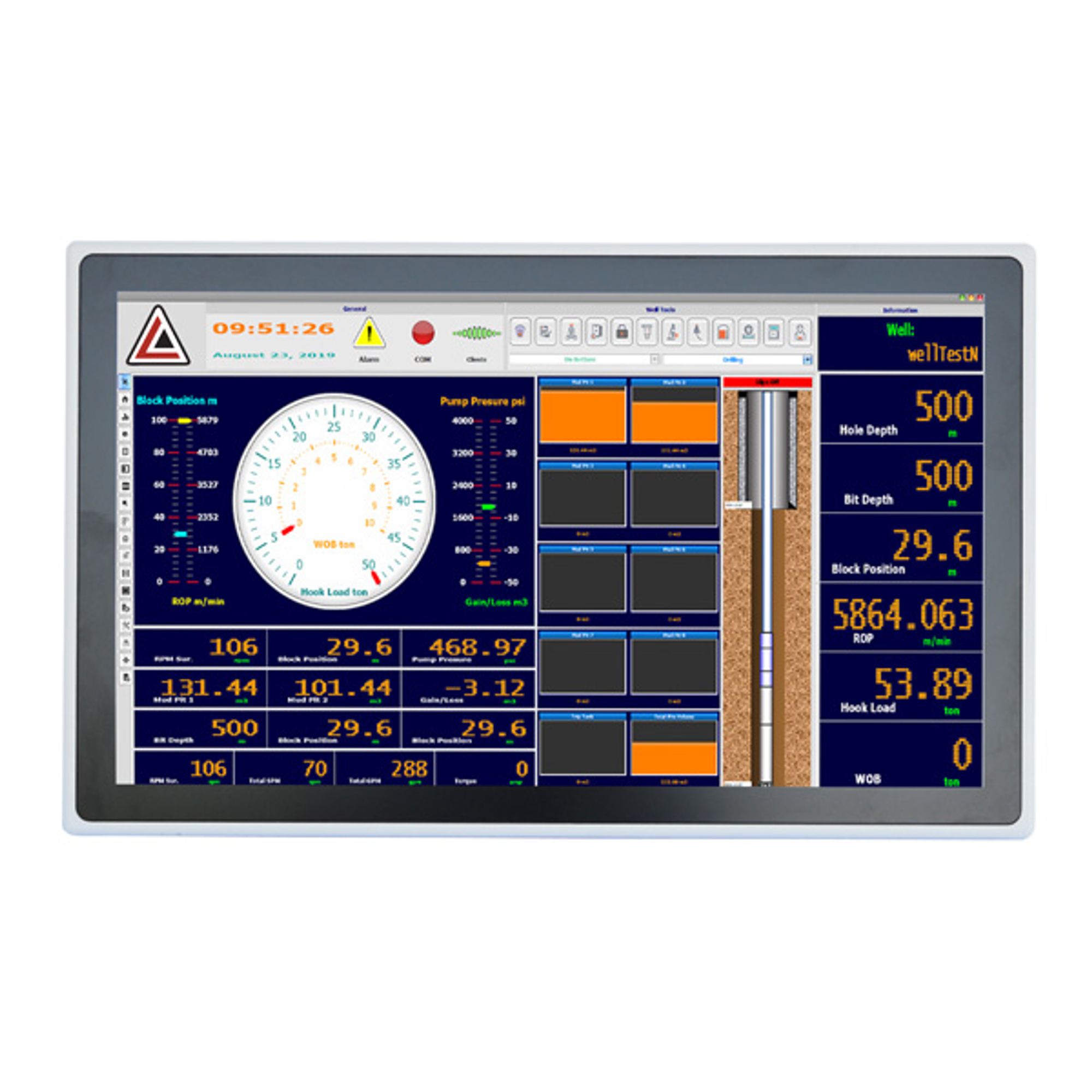

Model 2874-21.5" WS
21.5"displayZone-2certifiedIP66sealed
Target Application
MWD Surface Systems, Rig Floor Displays, HazLoc Computers, Truck-mounted HMI.
Description
The Model 2874 is a Zone-2 workstation ideal for applications on the oil rig, in vehicles, or in safety-critical environments. This RFD features a 21.5" widescreen display (16:9 aspect ratio) with standard I/O ports to interface easily with other systems.
The unit is configurable with certification-level, performance, optional digitizer, and optional depth tracker. The Model 2874 is designed to interface with sensors and communicate with other systems.
MWD manufacturers have largely standardized on Laversab Zone-2 RFDs.
Technical Reference
Full specs.
Every detail.
SYSTEM CONFIGURATION
Core Functions
Product Type: PC Workstation
Certifications: ATEX / IECEx Zone-2
Embedded Capabilities: DAQ/Digitizer for MWD Depth Tracker
Display: 21.5" capacitive-touch
Resolution: 1920 × 1080
Brightness: 1000 nits; adjustable
Configurable Functions
Processor: Intel® Core i5 @ 1.6 / 4.1 GHz Quad-core
Processor: Intel® Core i7 @ 1.7 / 4.4+ GHz Quad-core
Operating System: Windows 10 Professional
Certifications: ATEX / IECEx Zone-2
Data Storage: 256 GB to 2 TB SSD
Memory: 16 GB to 64 GB
Wireless Radio: Wi-Fi, 900 MHz, 900 MHz Turbo, 2.4 GHz, 2.4 GHz MIMO
Input / Output
# Pressure Inputs: Up to 2
Pressure Connectors: 19-pin, 6-pin, or 3-pin
USB ports: 1x Protected [Ex ic], 2x High-speed
Serial ports: RS 232; RS 485 available
LAN: 1x Gbit PoE (Power over Ethernet)
APPLICATION SOFTWARE
Software
Laversab Software: LINKS DT (Depth Tracker)
Laversab Software: Digitizer API
User software: User MWD software or other can be pre-loaded or installed
ENVIRONMENTAL
Environmental Specs
Operating temp: -40°C to +60°C
Storage temp: -40°C to +75°C
Humidity: 5 to 100%
PHYSICAL
Physical Specs
Power: 90-260 VAC, 47-63 Hz, 150 VA
Sealing: IP66 on all six sides
Weight: 25 lbs
Dimensions: 21"(w) 12.75"(h) 3.77"(d)
Operating Shock: 50 G, 11 ms half-sine
Operating Vibration: 3.0 G, RMS, 5 to 500 Hz
Mounting: Hanger or Panel mount
Mounting: VESA-100
Mounting: Desktop stand
SYSTEM
Display
Display
21.5" capacitive-touch
Resolution
1920 × 1080
Brightness
1000 nits; adjustable
Power & Protection
Power
90-260 VAC, 47-63 Hz, 150 VA
Sealing
IP66 on all six sides
Certifications
ATEX / IECEx Zone-2
Physical
Weight
25 lbs
Dimensions
21"(w) 12.75"(h) 3.77"(d)
Mounting
Hanger or Panel mount, VESA-100, Desktop stand
