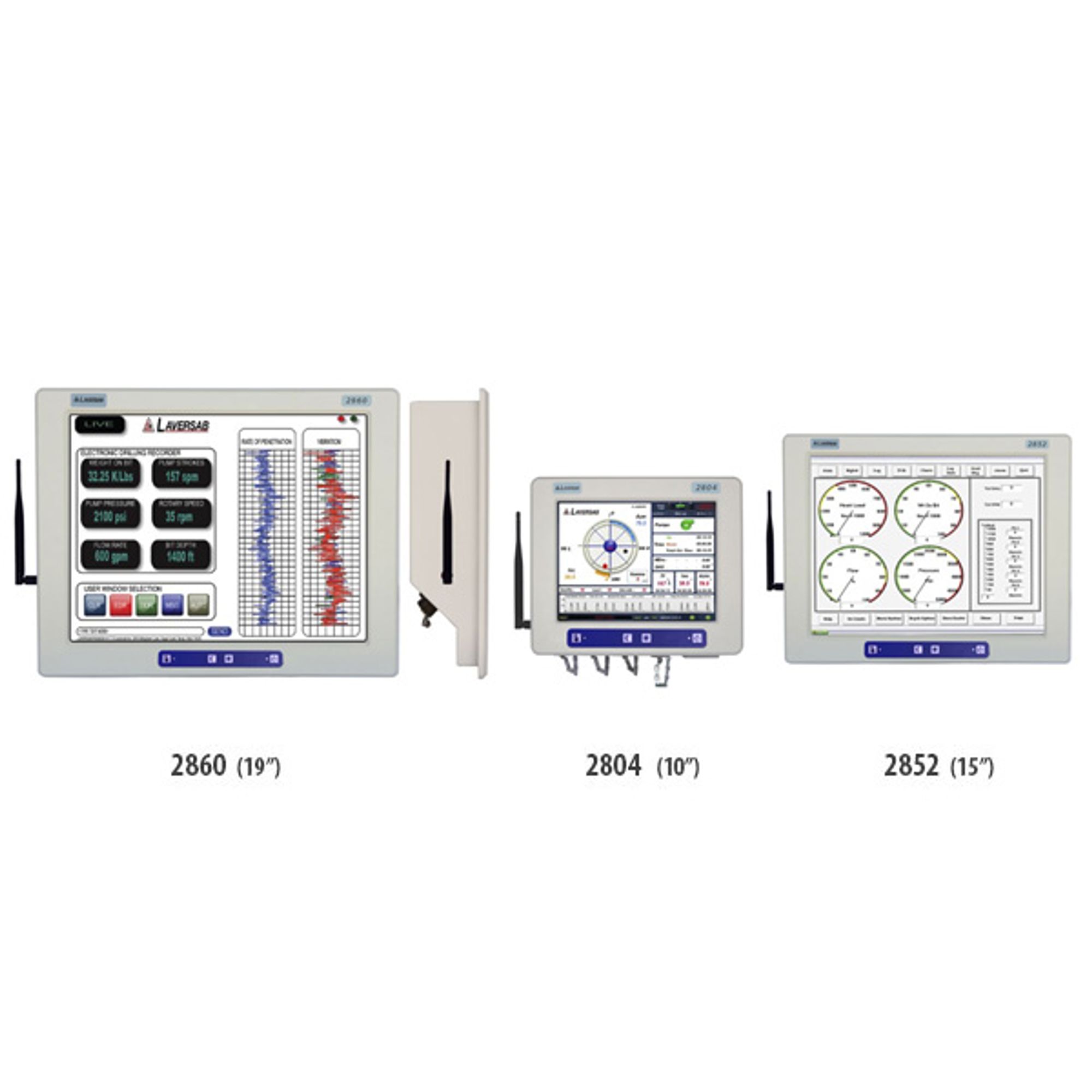

Models 2804 / 2852 / 2860
Zone-2certifiedIP66sealed3 sizesavailable
Description
Laversab Models 2804 / 2852 / 2860 are Zone-2 certified HazLoc workstations designed for rugged applications. These touchscreen units are built for use on the oil rig, on vehicle panels, or in safety-critical environments where extreme weather and shock/vibration conditions may exist.
The units can be configured to meet any specific requirements. Multiple protocols and communication options — both wired and wireless — are available.
These units can also integrate PCBs designed by the customer or by Laversab for custom applications. Customer-specific software can be installed before or after delivery.
Technical Reference
Full specs.
Every detail.
SYSTEM CONFIGURATION
Configuration
Product Type: PC Workstation
Certifications: ATEX / IECEx Zone-2
Display: 2804: 10.4", 2852: 15", 2860: 19"
All models include scratch resistant touch-screen with polarizer
Brightness: 1300 nits; Sunlight readable with adjustable brightness
Processor: Intel® Atom 1.91 GHz Quad-Core, Intel® Core i7 2.6 GHz Quad-core
Operating System: Windows 10 or other
Data storage: 128 GB to 512 GB SSD
Memory: 8 GB to 32 GB DRAM
Wireless LAN: 900MHz, 2.4GHz, or other options
I/O: 2x USB, 2x RS-232/422/485, LAN, user defined options
Application Software
User Configurable: Pre-loaded or installed via USB or network
ENVIRONMENTAL PERFORMANCE
Environmental Specs
Operating temp: -40°C to +60°C
Storage temp: -40°C to +75°C
Humidity: 5 to 100%
PHYSICAL CHARACTERISTICS
Physical Specs
Power: 90-260 VAC, 47-63 Hz, 150 VA
Sealing: IP66 on all six sides
Weight: 2804: 9 lbs, 2852: 15 lbs, 2860: 22 lbs
Dimensions: 2804: 11.4"(w) 9.4"(h) 4.0"(d)
Dimensions: 2852: 15.2"(w) 12.3"(h) 4.0"(d)
Dimensions: 2860: 18.4"(w) 15.4"(h) 4.0"(d)
Mounting: Hanger & Panel mount; VESA-75/100
SYSTEM
Display
2804
10.4"
2852
15"
2860
19"
Protection
Certification
ATEX / IECEx Zone-2
Sealing
IP66 on all six sides
Operating temp
-40°C to +60°C
Physical
Weight
9 lbs / 15 lbs / 22 lbs
Mounting
Hanger & Panel mount; VESA-75/100
Power
90-260 VAC, 47-63 Hz, 150 VA
