Aircraft Navigation Testing

Navigation is a critical piece to aircraft operations. There are several navigation systems that contribute to a pilot’s ability to correctly navigate an aircraft. Let’s look at some of the systems and how they are tested:

01 / 06

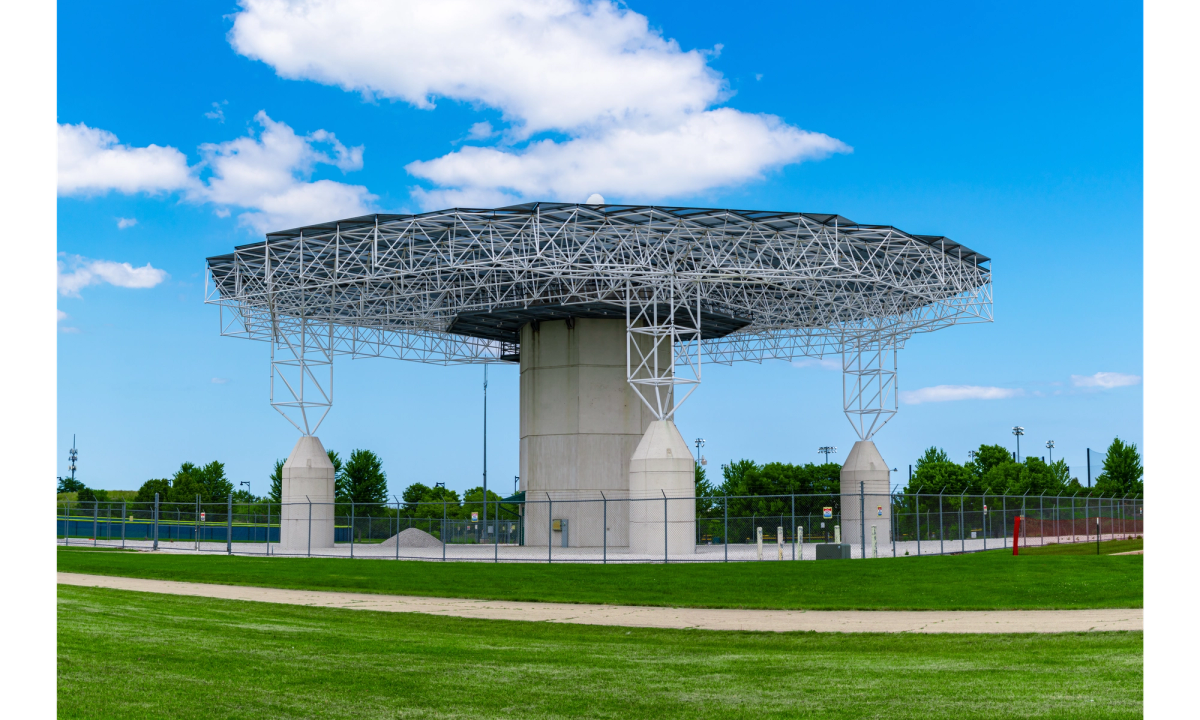

VOR (VHF Omni-Directional Range):

VOR is a critical component used for navigation.
It provides azimuth information, bearing to and from ground-based VOR stations.
Aircraft equipment includes: VOR antenna, VOR frequency selector, and CDI or HSI indicators.

02 / 06

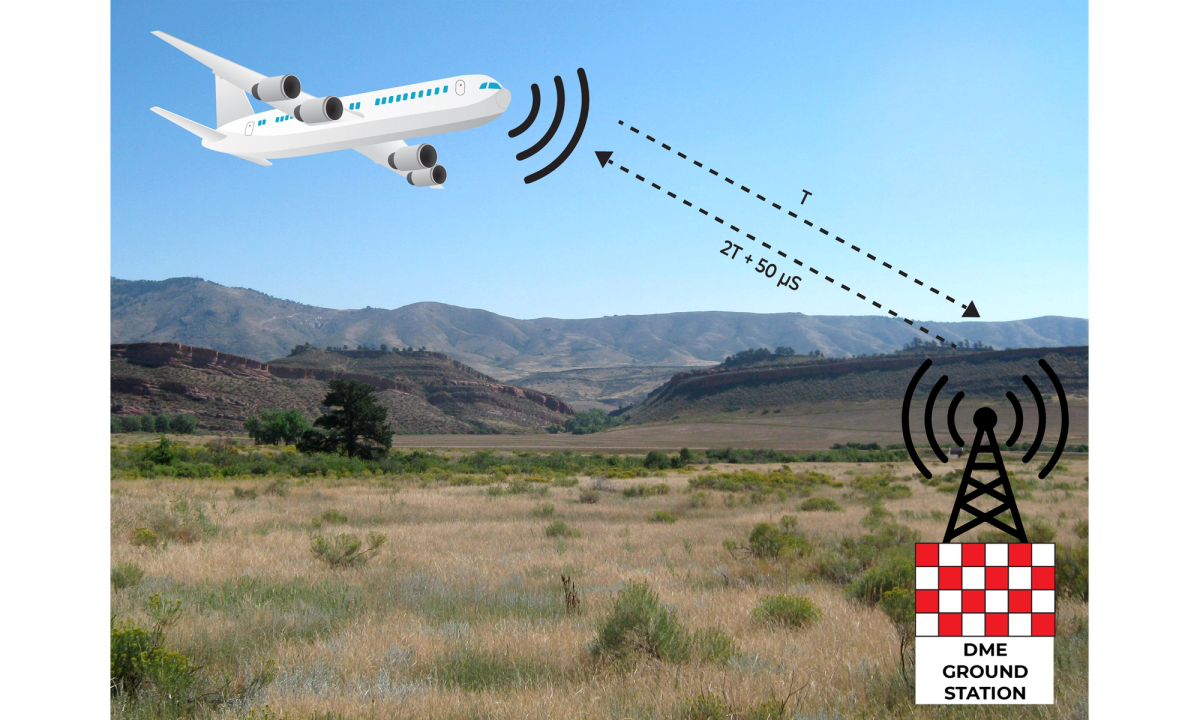

Distance Measuring Equipment (DME):

DME provides accurate distance measurement between the aircraft and a ground station.
It calculates distance based on the time it takes for radio signals to travel.
Used for precise distance measurements during approaches and en-route segments.

03 / 06

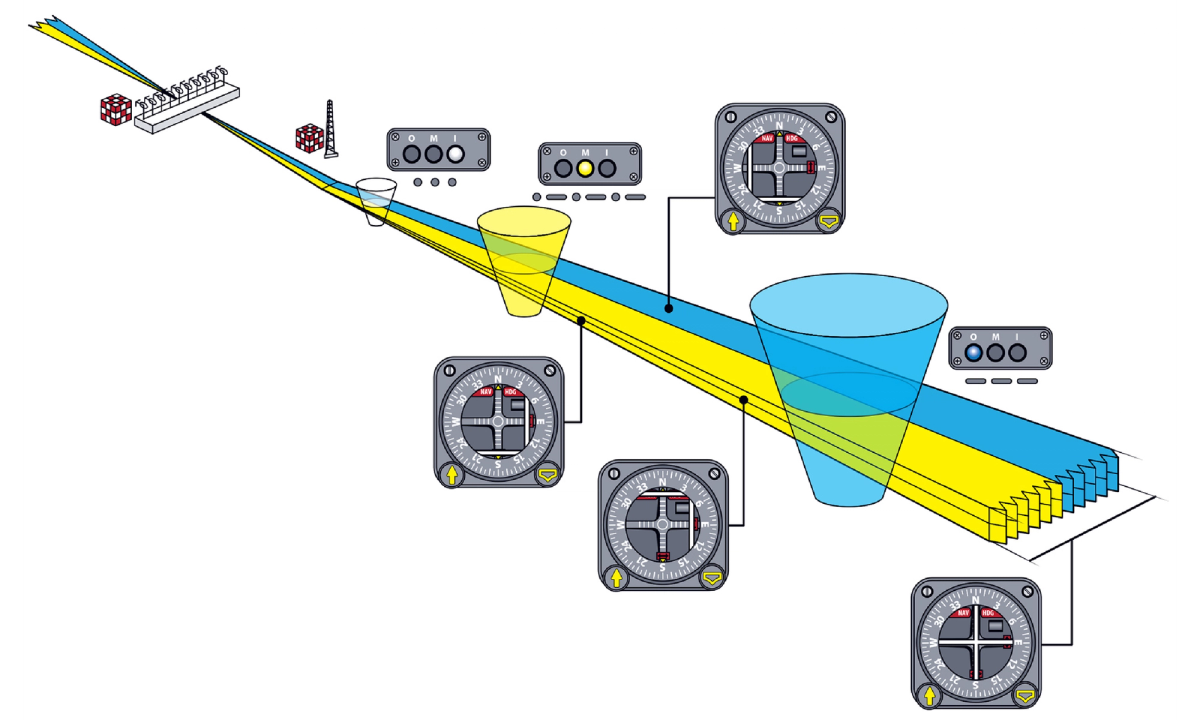

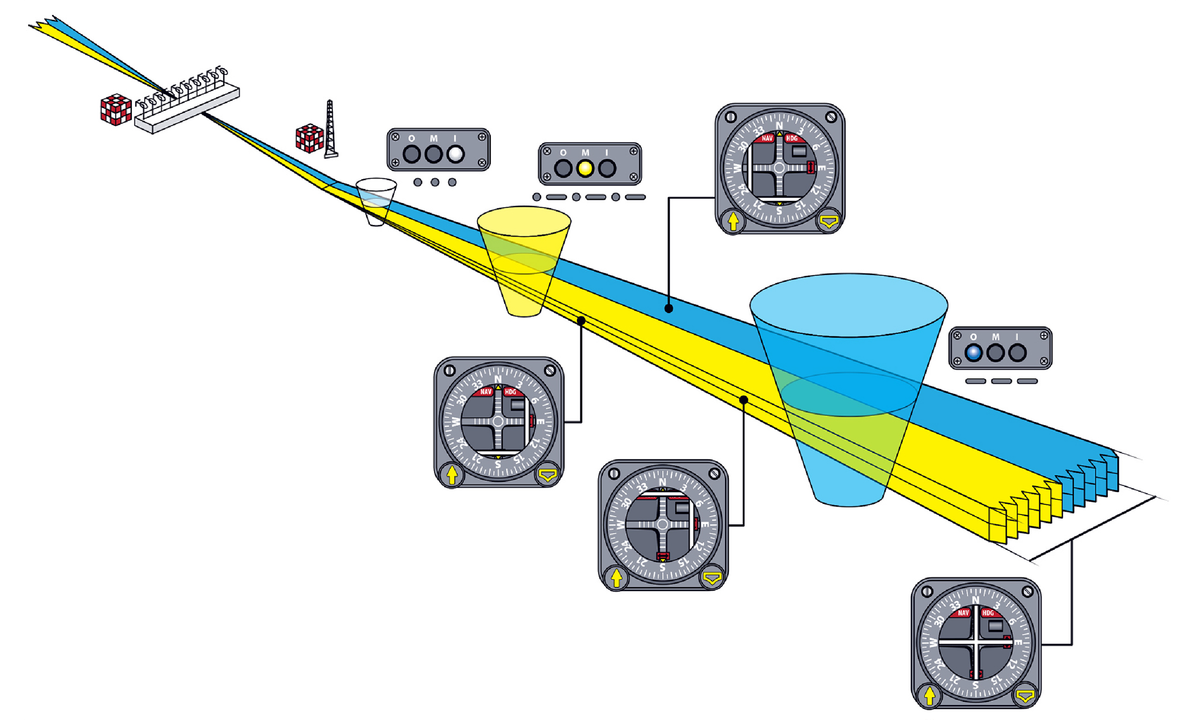

Instrument Landing Systems (ILS):

ILS guides aircraft during approach and landing.
Consists of localizer for horizontal guidance and glide slope for vertical guidance.
Pilots follow ILS signals to align with the runway centerline and descend at the correct angle.

04 / 06

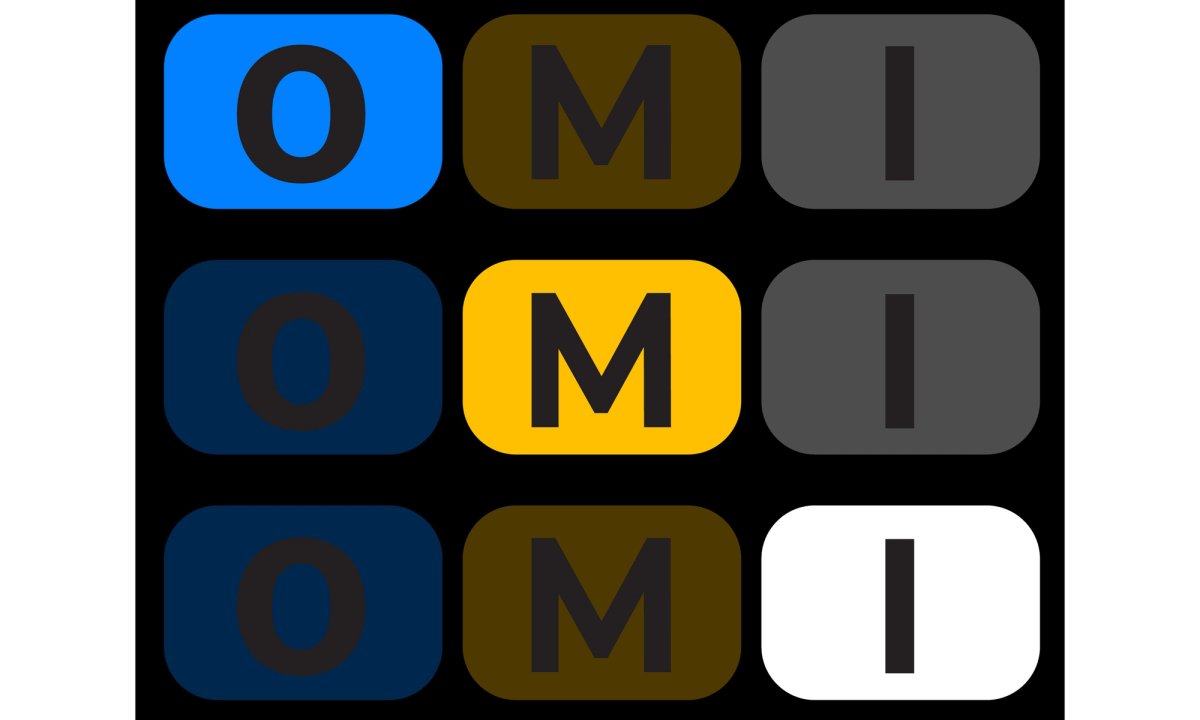

Marker Beacons:

Used in conjunction with ILS to provide pilots with a means to determine position along an established route.
Outer Marker is located 4 to 7 nautical miles before the runway threshold.
Middle Marker is located 0.5 to 0.8 nautical miles before the runway threshold.
Inner Marker is located at the runway threshold.

05 / 06

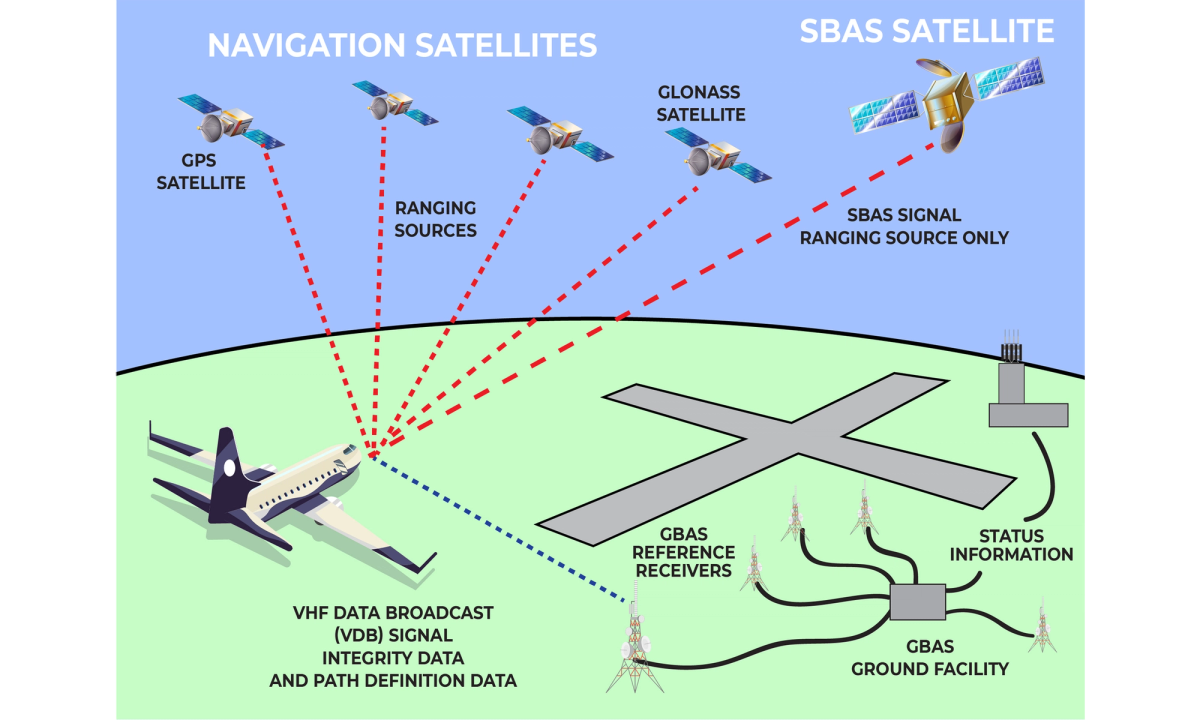

GPS (Global Positioning System):

GPS provides accurate position information using signals from satellites.
Aircraft GPS receivers calculate latitude, longitude, altitude, and groundspeed.
GPS is widely used for both en-route and precision approaches.

06 / 06

Functional Testing:

Regularly testing the radio navigation systems of an aircraft is essential to its performance.

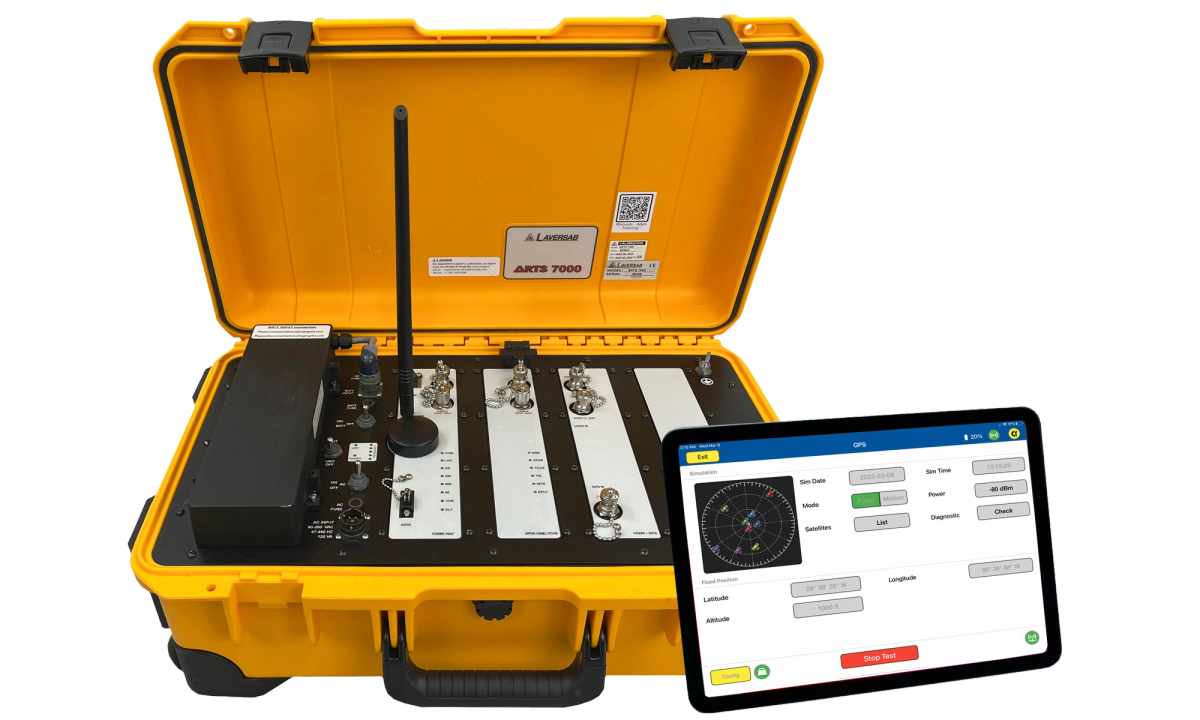

Test systems like the ARTS-7000 can transmit radio signals to the aircraft under test that simulate ground stations and runways.
These tests will ensure aircraft navigation systems are performing to specification.

Remember that these navigation systems work together to ensure safe and efficient navigation for aircraft during all phases of flight.
