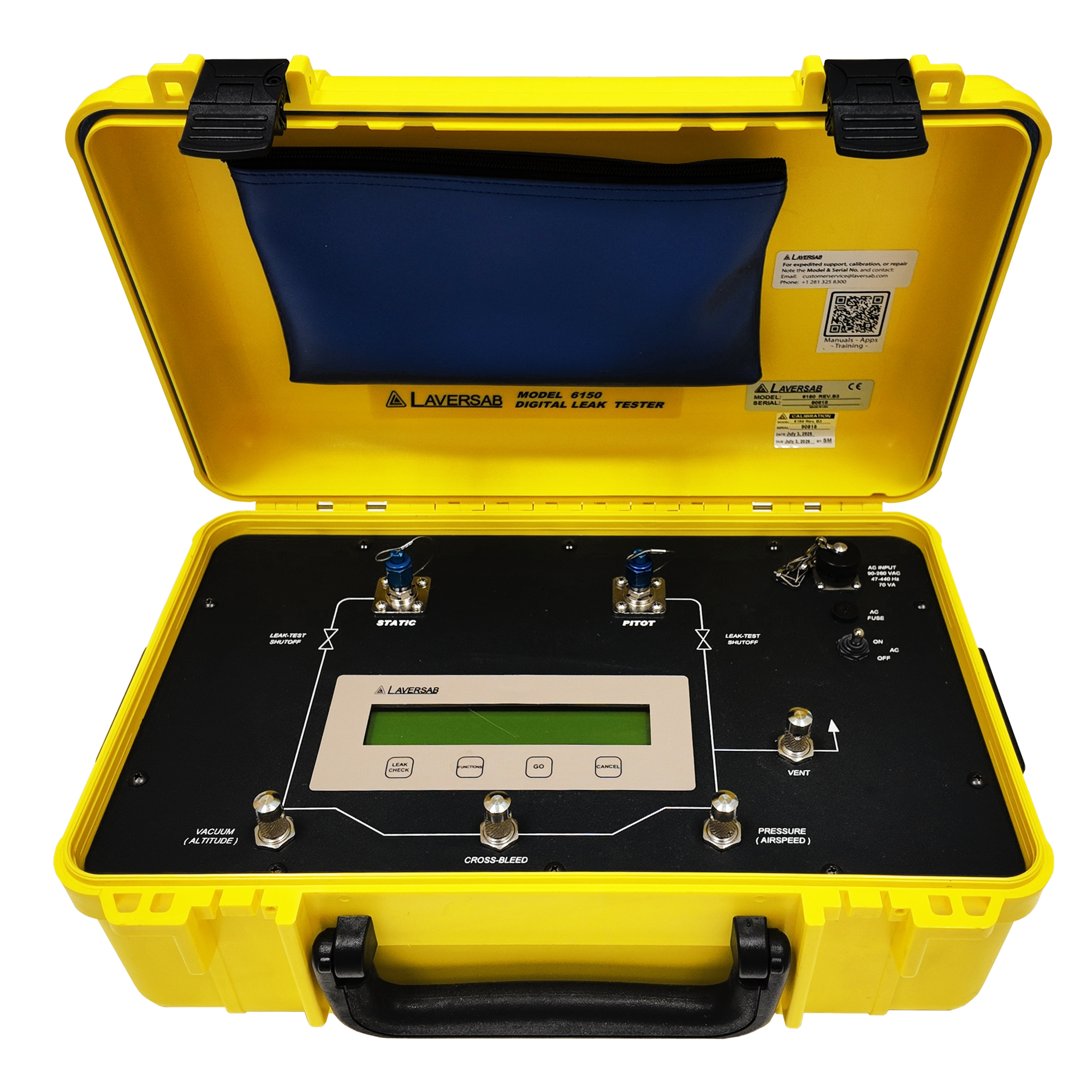

Model 6150
LeaktestingNon-RVSMsystemAllaircraft
Target Aircraft
All types.
Target Application
Leak checks only.
Description
The 6150 Tester connects directly to an aircraft’s Pitot and Static system. It allows the user to simulate altitude, airspeed, and VSI and also to perform leak checks on both the Pitot and Static systems of an aircraft.
Leak values are clearly displayed in 1, 3, and 5 minutes intervals. Several protection features are included in the tester to reduce the possibility of damage to the aircraft instruments.
Technical Reference
Leak testing.
Simple and reliable.
STATIC PORT
Pressure Function
Range: 1.0 to 32 inHg
Resolution: 0.001 inHg
Accuracy: ±0.008 inHg
Units: inHg, mbar
Altitude Function
Range: -2000 ft to 50,000 ft
Resolution: 1 ft
Accuracy: ±24 ft @ 35,000 ft
Units: feet, meters
Climb Function
Range: 0 ft/min to ±10,000 ft/min
Resolution: 1 ft/min
Accuracy: ±1% of rate of climb
Units: ft/min, meters/sec
PITOT PORT
Pressure Function
Range: 1.0 to 60 inHg
Resolution: 0.001 inHg
Accuracy: ±0.008 inHg
Pt Units: inHg, mbar
Airspeed Function
Range: 0 to 500 knots
Resolution: 0.1 knots
Accuracy: ±2.0 knots @ 50 knots, ±1.0 knots @ 100 knots, ±0.5 knots @ 200 knots, ±0.2 knots @ 500 knots
Units: knots, km/hr
Rate of change: 0 to 500 knots/min
Leak Check Function
Resolution: 1 ft/min; 0.001 inHg/min
SYSTEM
Power Requirement
AC Input
90-260 VAC, 47-440 Hz, 50 VA
Dimensions & Weights
Main unit
22″ × 14″ × 9″ / 18 lbs
Environmental Specs
Operating temp
0°C to 50°C
Storage temp
-40°C to 75°C
Humidity
5 to 100%
