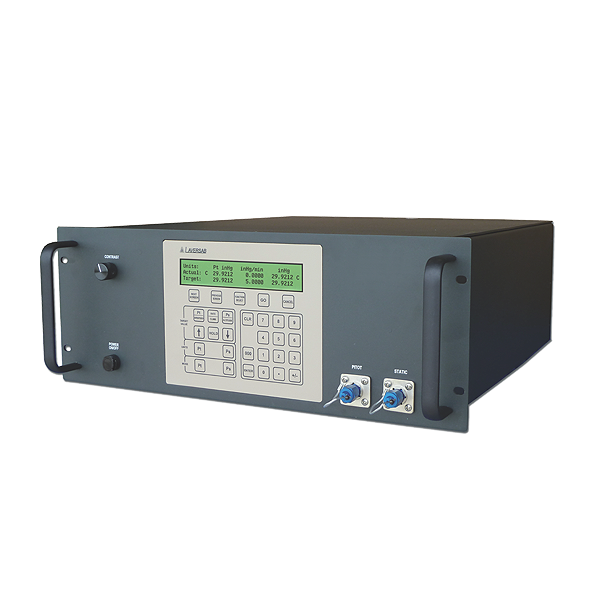

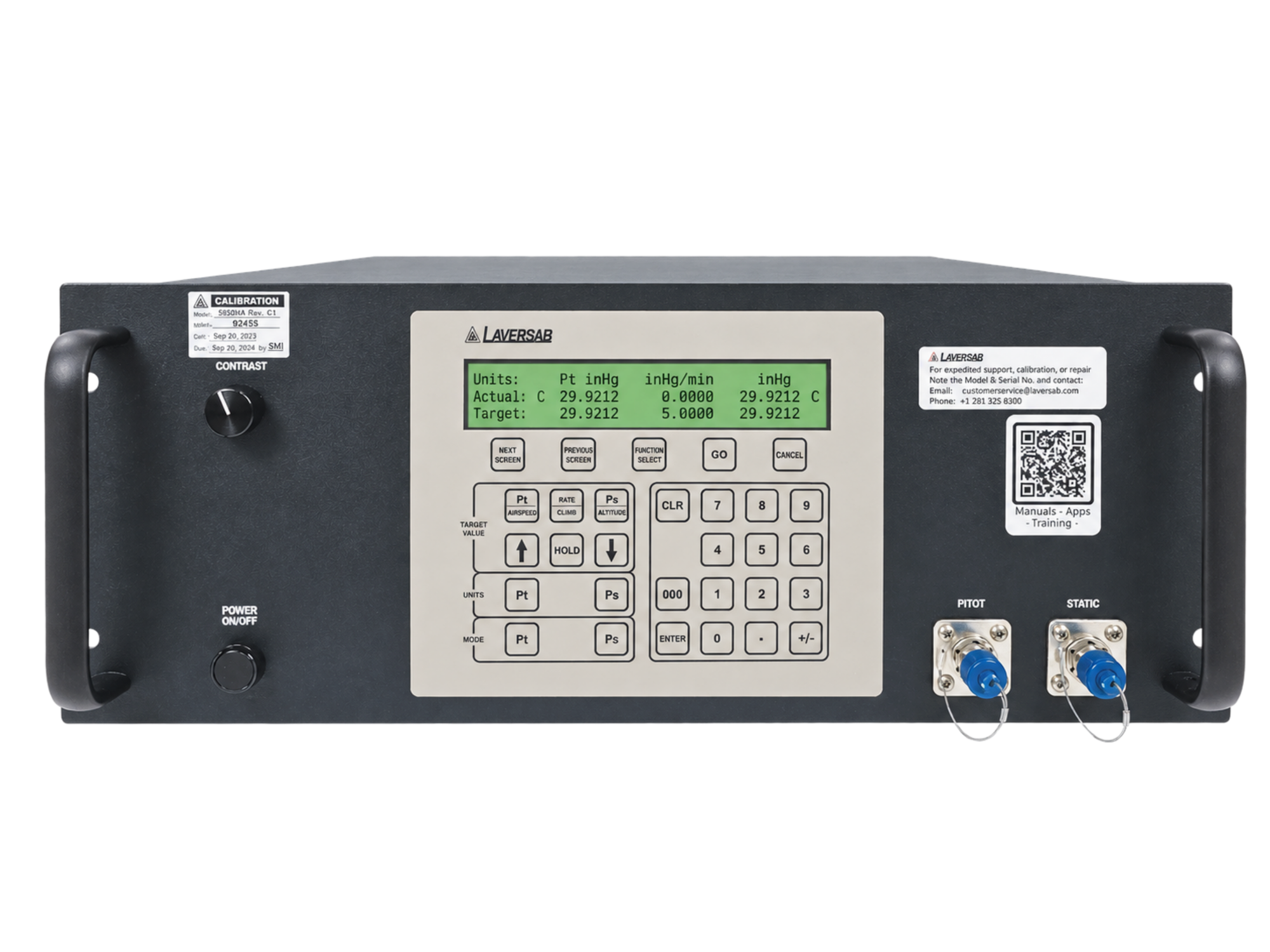

Model 6580
Built-inPumpsRVSMCompliantATEReady
Target Application
Aircraft instrumentation calibration.
Description
The 6580 Air Data Calibrator can be used to test and calibrate altimeters, airspeed / Mach indicators, Climb indicators, Flight data recorders, Air data computers, and EPR indicators.
This rack-mountable Calibrator meets all RVSM requirements and has built-in pressure and vacuum pumps. The use of profiles makes it possible for the operator to run through a test using only a single key on the front panel keypad of these units.
It can also be controlled externally as part of an ATE system.
Technical Reference
Built-in pump calibration.
Rack-mounted precision.
STATIC PORT
Pressure Function
Range: 0.1 to 42 inHg
Resolution: 0.001 inHg
Accuracy: ±0.002 inHg
Units: inHg mbar
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min
Altitude Function
Range: -4000 ft to 100,000 ft
Resolution: 1 ft
Accuracy: ±2 ft @ 0 ft, ±6 ft @ 35,000 ft, ±12 ft @ 50,000 ft, ±50 ft @ 80,000 ft
Units: feet, meters
Climb Function
Range: 0 ft/min to ±50,000 ft/min
Resolution: 1 ft/min
Accuracy: ±1% of rate of climb
Units: ft/min, meters/sec
PITOT PORT
Pressure Function
Range: 0.1 to 110 inHg
Resolution: 0.001 inHg
Accuracy: ±0.003 inHg
Pt Units: inHg, mbar, EPR
Qc Units: inHg, mbar
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min (EPR in inHg/min)
Airspeed Function
Range: 0 to 1100 knots
Resolution: 0.1 knots
Accuracy: ±1.5 knots @ 20 knots, ±0.5 knots @ 50 knots, ±0.25 knots @ 100 knots, ±0.1 knots @ 300 knots, ±0.01 knots @ 1000 knots
Units: knots, Mach, km/hr, mph
Airspeed Rate
Range: 0 to 800 knots/min
Resolution: 0.1 knots/min (0.01 km/hr/sec)
Accuracy: ±2% of rate
Units: knots/min, km/hr/min, mph/min
Mach Function
Range: 0.0 to 5.0 Mach
Resolution: 0.001 Mach
Accuracy: ±0.001 above 0.2 Mach
EPR Function
Range: 0 to 199
Resolution: 0.001
Accuracy: ±0.002
SYSTEM
Power Requirement
AC Input
90-260 VAC, 47-440 Hz, 200 VA
External Interfaces
Interfaces
RS232 Serial, IEEE-488, Encoder (optional)
Remote
Model 6505 Remote (optional)
Dimensions & Weights
Main Unit
19.0" × 20.0" × 7.0" / 30 lbs
Mounting
4U Rack-mountable
Environmental Specs
Operating Temp
0°C to 50°C
Storage Temp
-25°C to 75°C
Humidity
5 to 95% non-condensing
