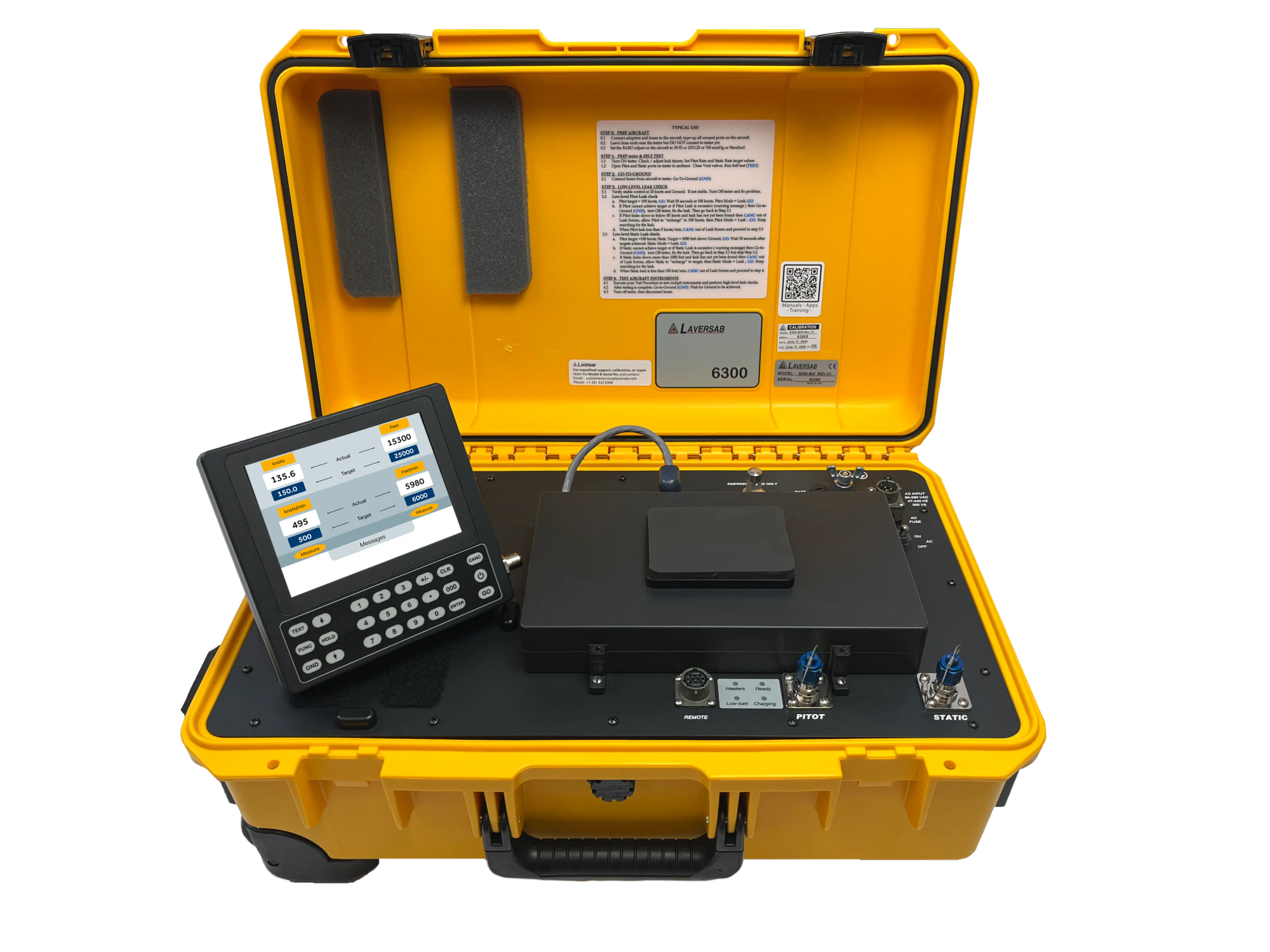

Front view
1 / 5

Model 6300

2-channelsystemRVSMchecksWi-Fienabled
Target Aircraft

All commercial; approved for Boeing, Airbus, and most OEMs.

Target Application

RVSM pitot-static checks.

Description

The Model 6300 is a 2-channel system designed to test all aircraft up to 60,000 ft & 690 knots. It is used to perform leak checks and RVSM accuracy checks on the Pitot-Static systems - including altimeters, airspeed indicators and VSI's - and can be done at low airspeeds. The Model 6300 includes a Remote unit with large keypad and display, a removable 8-hour battery (optional), wide operating temperature (optional), and "profiles" to accelerate testing. The unit can be controlled by an iPad or other tablets.

Build Your System→
Request quote→Request service→
Available on the App Store
Technical Reference

Precision testing.
RVSM ready.

STATIC PORT

Pressure Function
Range: 1 to 32 inHg
Resolution: 0.001 inHg
Accuracy: ±0.002 inHg
Units: inHg mbar, psi, mmHg, kpa
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min
Altitude Function
Range: -2000 ft to 60,000 ft
Resolution: 1 ft
Accuracy: ±3 ft @ 0 ft, ±4 ft @ 10,000 ft, ±6 ft @ 20,000 ft, ±9 ft @ 35,000 ft, ±18 ft @ 50,000 ft
Units: feet, meters
Climb Function
Range: 0 ft/min to ±15,000 ft/min
Resolution: 1 ft/min
Accuracy: ±1% of rate of climb
Units: ft/min, meters/sec

PITOT PORT

Pressure Function
Range: 0 to 30 inHg differential
Resolution: 0.001 inHg
Accuracy: ±0.003 inHg
Pt Units: inHg, mbar, psi, mmHg, kpa, EPR
Qc Units: inHg, mbar, psi, mmHg, kpa
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min EPR in inHg/min
Airspeed Function
Range: 0 to 690 knots
Resolution: 0.1 knots
Accuracy: ±1.0 knots @ 20 knots, ±0.3 knots @ 50 knots, ±0.2 knots @ 100 knots, ±0.1 knots @ 200 knots, ±0.04 knots @ 500 knots
Units: knots, Mach, km/hr, mph
Rate of change: 0 to 500 knots/min
Airspeed Rate
Range: 0 to 500 knots/min
Resolution: 0.1 knots/min
Accuracy: ±2% of rate
Units: knots/min, km/hr/sec, mph/min
Mach Function
Range: 0.0 to 3.0 Mach
Resolution: 0.001 Mach
Accuracy: ±0.001 above 0.2 Mach

SYSTEM

Power Requirement
AC Input
90-260 VAC, 47-440 Hz, 100W (200W with heaters)
Battery
Removable battery optional: 6 to 8 hours of operation
External Interfaces
Interfaces
Wi-Fi, RS232 Serial, Encoder optional
Dimensions & Weights
Main unit
22″ × 14″ × 9″ / 34 lbs
Remote unit
6″ × 6″ × 1″ / 1.8 lbs
Environmental Specs
Operating temp
0°C to 50°C, -40°C to 50°C optional
Storage temp
-40°C to 75°C
Humidity
5 to 100%
