Three Outputs
In addition to the Primary Static and Pitot outputs, a third output is provided. This output can be used as a secondary static, a differential static, or secondary pitot. This output allows the user to create a second altitude, a second absolute pressure, a differential pressure for simulating AOA, or a differential pressure for generating a second airspeed to simulate AOS. When the third output is not used, the tester operates exactly like our 2-output tester Model 6300.
Calibration period
1 year.
Programmable limits
User-programmable limits for altitude, airspeed, differential pressure, Mach and VSI provide protection to the aircraft.
Ground feature
Brings Pitot and Static outputs to ambient ground pressure after completing a test.
Leak checks
Leak-checks can be performed independently on any of the three outputs. The display of instant leak rates provides immediate feedback to the user.

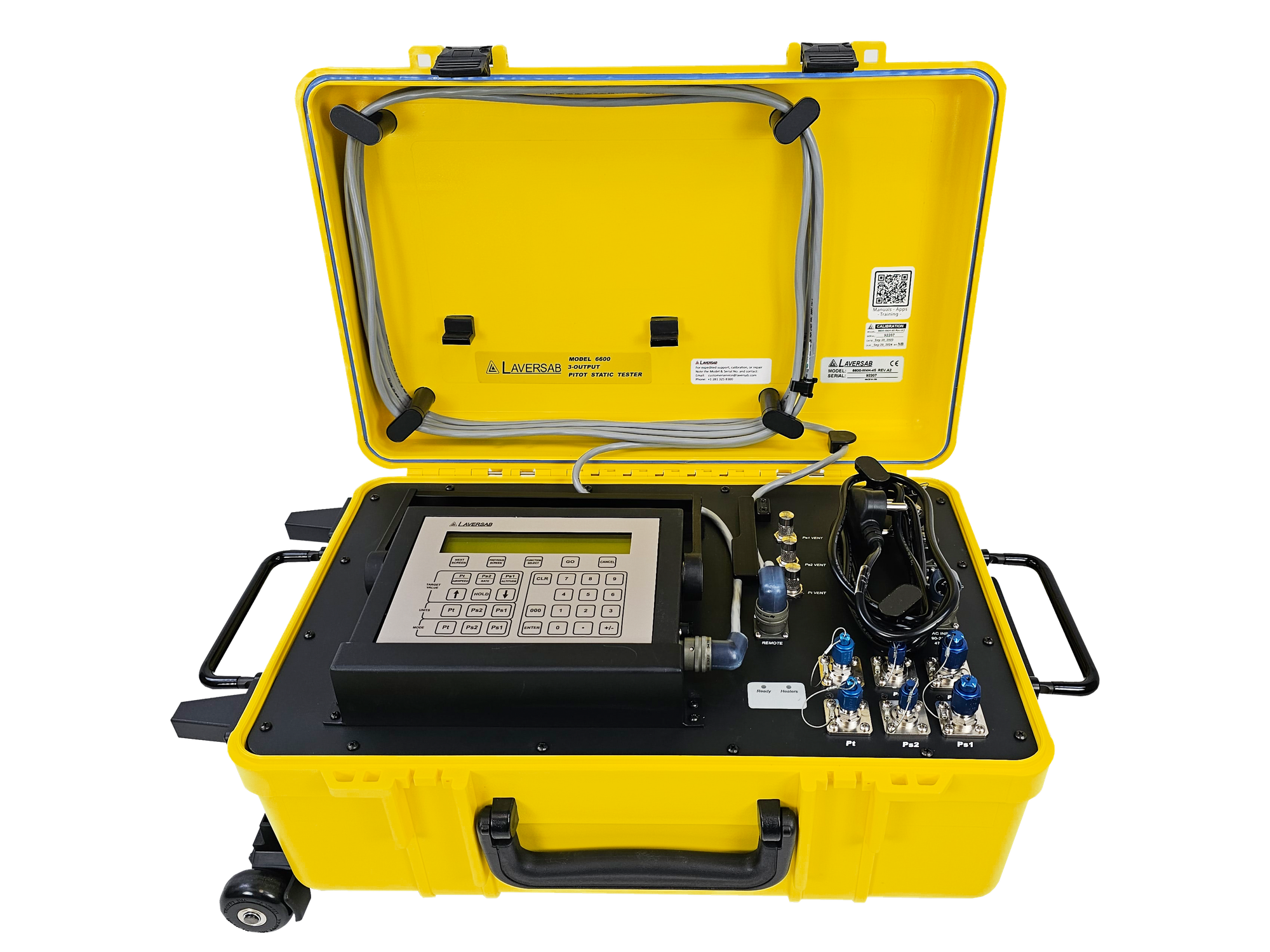

Remote unit
The Remote unit is the operator interface for the tester. All valid parameters of all three outputs are clearly displayed simultaneously on a single screen on the remote.
Applications
Ideal tester for use with aircraft equipped with SmartProbe™ that have the ability to sense AOA and/or AOS.
Works identically to the 6600 but can simulate higher altitudes and airspeeds. Also, this tester has a wider operating temperature. Therefore this tester is ideal for military aircraft equipped with SmartProbe™.
Leak-checks and air-data-system accuracy-checks on all RVSM aircraft including aircraft with SmartProbe™. The tester can be used either in 3-output mode or 2-output mode. In 2-output mode this tester operates exactly like our Model 6300-M3.
When the 6600-M4H is used with the OSM, it is possible to completely automate leak checks, which can be performed either individually on each port of the aircraft probes, or simultaneously on all ports.
RVSM compliant
The high accuracy of the tester and NIST-traceable calibration make the tester fully RVSM-compliant and suitable for use on all RVSM-compliant aircraft.
Automated operation
Simply enter the target set-points for the three outputs and the unit automatically achieves the targets, ramping at the programmed rates. Control at the set-point is stable within ±1 foot, ±0.1 knot or ±0.001 inHg.
Jog and Hold features
Set-points can be jogged up or down in small increments. Ramping to a set-point can be put on hold and controlled at the current measured value.
Profiles feature
A profile of set-points can be downloaded from a PC, allowing the user to step through the set-points using a single key. Each profile can have up to 50 set-points and 12 profiles can be stored in the unit.
Pressure & Vacuum source
Built-in high-capacity dual vacuum pumps and pressure pump provide the pressure and vacuum source for the unit.
Manual Vent
The tester includes precision metering valves to enable manual venting of all three outputs in the event of power-loss.
