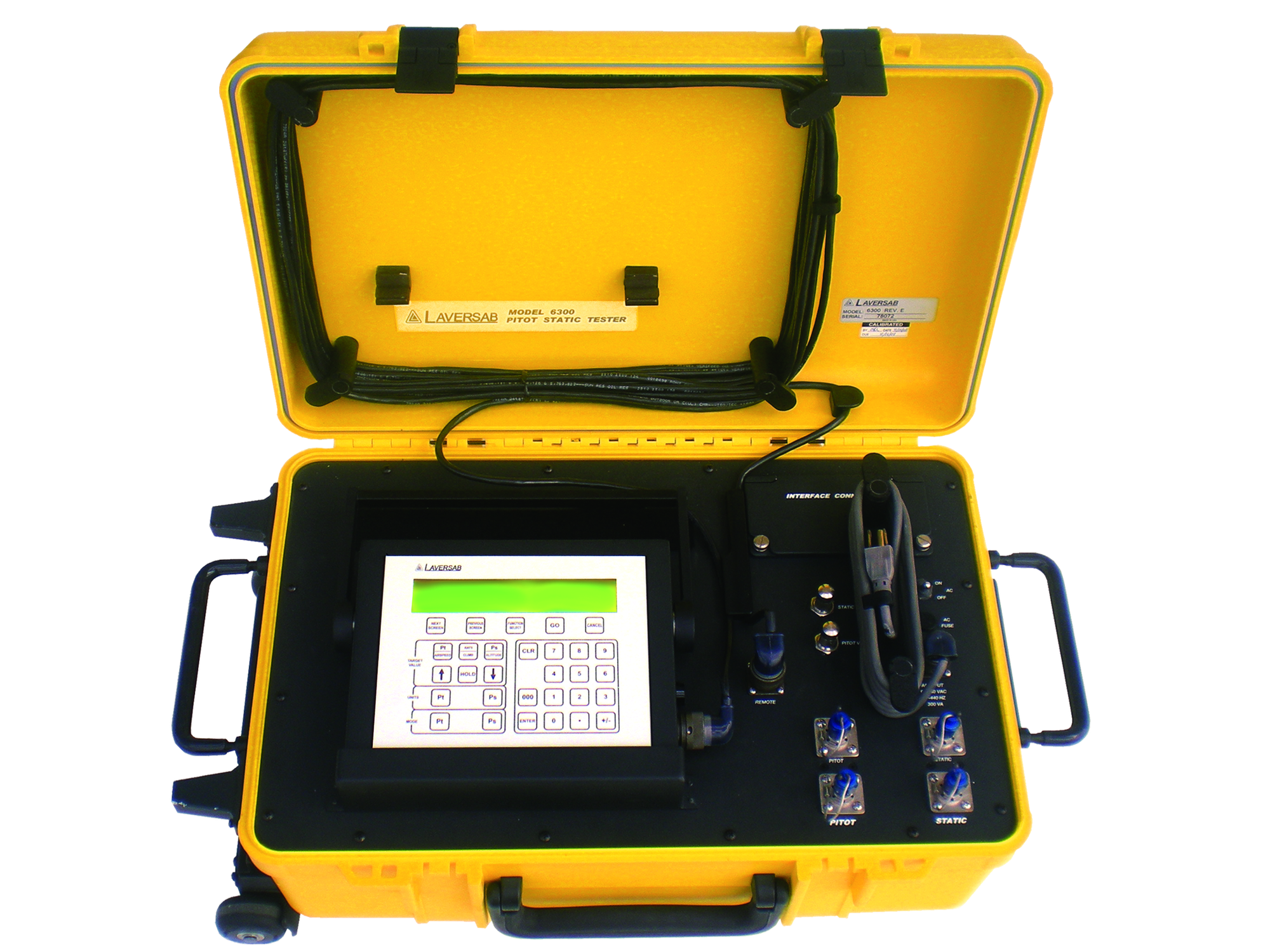

Front view

1 / 3

Model 6300L

Name: Model 6300L
Brand: Laversab, Inc.

RVSMcompliant60,000 ftaltitude650 knotsairspeed

NSN

6625 01 358 6854

Target Application

Model overview.

Description

Last time buy for this product was June 30, 2021.

For new requirements, we recommend the Model 6300 or Model 6200.

Request Service→

Technical Reference

Automated testing.
RVSM compliant.

STATIC PORT

Pressure function

Range: 0.1 to 42 inHg

Resolution: 0.001 inHg

Accuracy: ±0.002 inHg

Units: inHg, mbar

Altitude function

Range: -4000 ft. to 60,000 ft.

Resolution: 1 foot

Accuracy: ± 2 ft. @ 0 ft.

Accuracy: ± 6 ft. @ 35,000 ft.

Accuracy: ± 12 ft. @ 50,000 ft.

Units: Feet, Meters

Climb function

Range: 0 ft/min to ±25,000 ft/min

Resolution: 1 ft/min

Accuracy: ±1% of rate of climb

Units: Feet/min, Meters/sec

PITOT OUTPUT

Pressure Function

Range: 0.1 to 60 inHg

Resolution: 0.001 inHg

Accuracy: ±0.003 inHg

Units: inHg, mbar, EPR

Qc Units: nHg, mbar

Airspeed Function

Range: 0 to 650 knots

Resolution: 0.1 knots

Accuracy: ± 0.5 knots @ 50 knots

Accuracy: ± 0.25 knots @ 100 knots

Accuracy: ± 0.05 knots @ 650 knots

Units: knots, Mach, km/hr, mph

Rate of change: 0 to 500 knots/min

Mach Function

Range: 0.0 to 3.0 Mach

Resolution: 0.001 Mach

Accuracy: ±0.001 above 0.2 Mach

SYSTEM

Power Requirement

AC Input

90-260 VAC, 47-440 Hz ; 150 VA

External Interfaces

Interfaces

RS232 ; IEEE-488 & Encoder optional

Dimensions & weights

Main unit

22” x 14” x 9” / 40 lbs

Remote unit

7” x 8” x 2” / 1 lb.

Environmental Specs

Operating temp

0 to 50°C

Storage temp

-25°C to 75°C

Humidity

5 to 100%

RVSM compliant

The high accuracy of the tester and NIST-traceable calibration make the tester fully RVSM-compliant and suitable for use on all RVSM-compliant aircraft.

Calibration period

1 year.

Automated operation

Simply enter the target set-points for altitude and airspeed and the unit automatically achieves the targets, ramping at the programmed rates. Control at the set-point is stable within ± 1 foot and ± 0.1 knot.

Programmable limits

User-programmable limits for altitude, airspeed, Mach and VSI provide protection to the aircraft.

“Jog” and “Hold” features

Set-points can be “jogged” up or down in small increments. Ramping to a set-point can be put on “hold” and controlled at the current measured value.

“Ground” feature

Brings Pitot and Static outputs to ambient “ground” pressure after completing a test.

“Profiles” feature

A profile of set-points can be downloaded from a PC, allowing the user to step through the set-points using a single key. Each profile can have up to 50 set-points and 20 profiles can be stored in the unit.

Leak checks

Pitot and Static leak-checks can be performed either independently or simultaneously. Three leak-timers can be programmed to perform timed leaks between 1 to 20 minutes. The display of “instant” leak rates provides immediate feedback to the user.

Pressure & Vacuum source

Built-in high-capacity dual vacuum pumps and pressure pump provide the pressure and vacuum source for the unit. The pressure system includes a filter and membrane dryer to provide clean dry air for the entire system.

Remote unit

The Remote unit is the operator interface for the tester. It is small and light enough to be used in the cockpit. The tester can be turned On and Off from the Remote. All valid parameters, including altitude, climb and airspeed, are clearly displayed simultaneously on a single screen on the remote.
