ARTS-7000
ModulararchitectureWi-Ficontrolled 8 hrsbattery
Target Aircraft
All types (GA to commercial airliners).
Target Application
Navigation, Communications, Surveillance, GPS Systems Test. Suitable for all aircraft types — from GA to commercial airliners to military.
Description

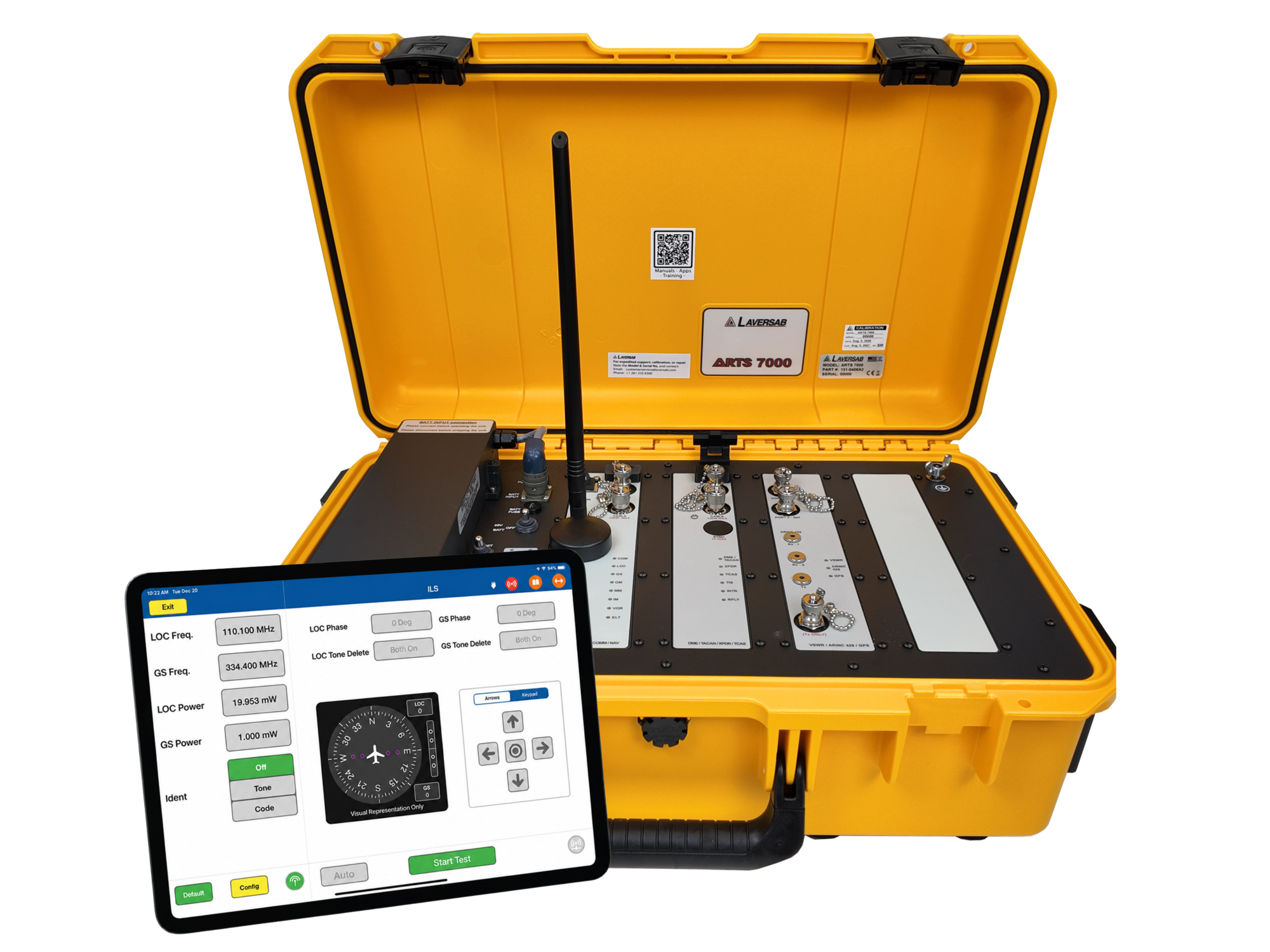

The Laversab ARTS-7000 is an all-in-one Avionics Radio Test System with a modular architecture designed to meet any aircraft radio test requirement — communication, navigation, surveillance, and RF tools.
Controlled wirelessly by a simple user interface, it can connect to Laversab pitot-static testers to fully exercise an aircraft. Engineered to reduce upfront costs, simplify aircraft testing, and cover all radio test requirements.
Technical Reference
Every module.
Every capability.
NAVCOM MODULE
Communications
AM / FM
HF SSB
SelCal
VDL Mode 2 (available 2024, optional)
Navigation
VOR
ILS – Localizer & Glide Slope
Marker Beacon
Emergency Location Transmitter
121.5 / 243 / 406 MHz
Tools
Power meter
Frequency counter
PULSE MODULE
DME
DME
DME & ILS
DME & VOR
Transponder
Mode S
ATCRBS Mode A & C
ADS-B IN/OUT
TIS & TIS-B 1090 MHz (optional)
UAT 978 MHz: TIS-B, FIS-B, ADS-B (optional)
TCAS
TCAS 1 & 2, ACAS (optional)
Altitude Monitoring
Transponder Altitude & Air Data simultaneous testing
GPS MODULE
GPS
GPS Signal Simulator
VSWR MODULE
VSWR
VSWR Meter
Distance to Fault Meter
SYSTEM
Power Requirement
AC Input
90-260 VAC, 47-65 Hz or 28 VDC, 25 W
Battery
Removable battery: 8 hours operation
External Interfaces
Interfaces
Wi-Fi, RS232 Serial, USB
Dimensions & Weights
Main unit
22″ × 14″ × 9″ / 30 lbs
Environmental Specs
Operating temp
-20°C to 60°C
Storage temp
-40°C to 75°C
Humidity
5 to 100%
