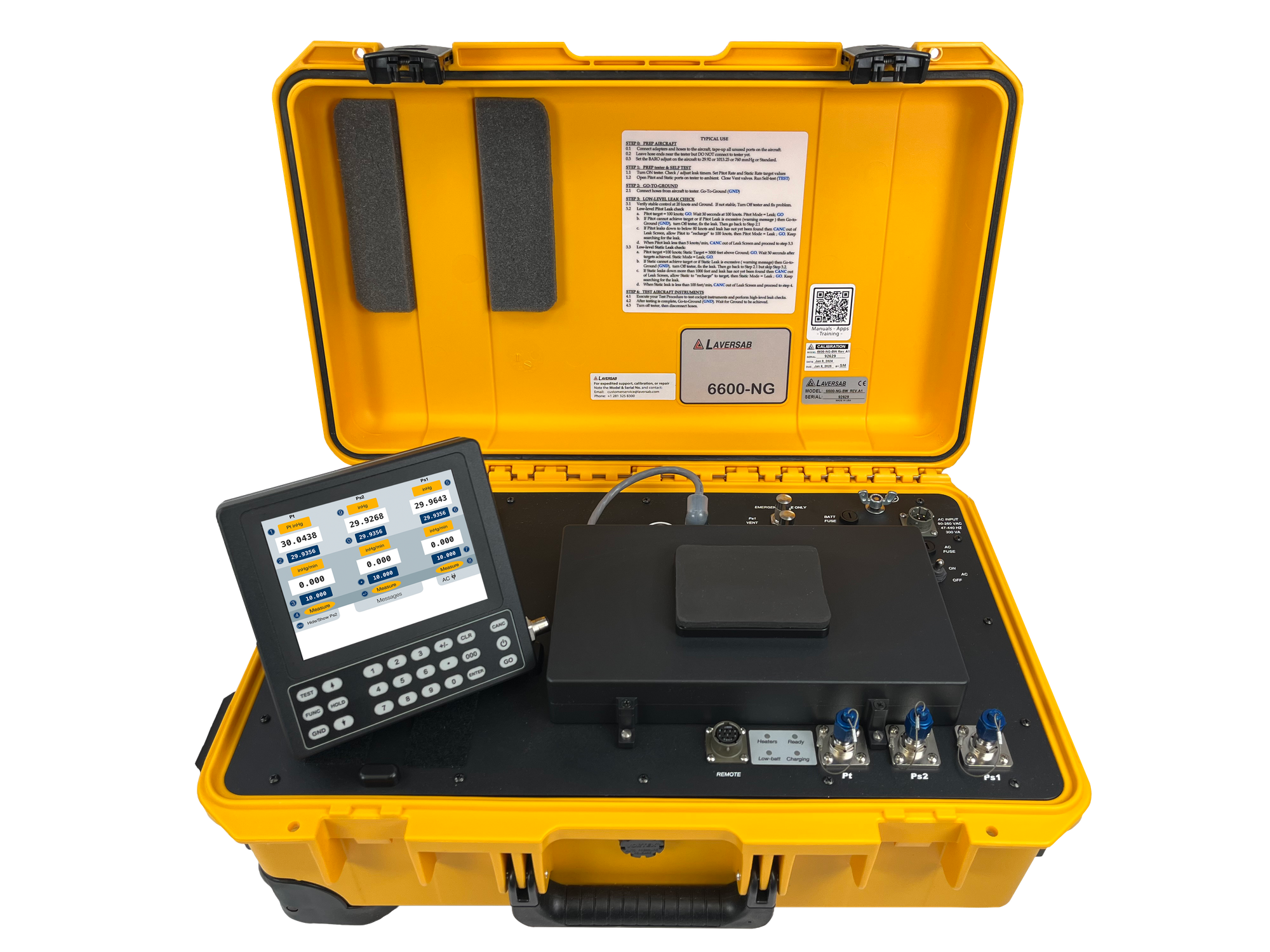

Model 6600-NG
3-channelsystemRVSMchecksWi-Fienabled
Target Aircraft
SmartProbe™ equipped aircraft like Embraer EJets, Airbus A220, Gulfstream, HondaJet.
Target Application
RVSM pitot-static checks.
Description
The Model 6600-NG is a 3-channel system designed to test aircraft equipped with SmartProbes™. The tester has one Static output (Ps1), one Pitot output (Pt) and a third output (Ps2) which can be used to simulate either AOA (angle of attack) or AOS (angle of sideslip).
It is used to perform leak checks and RVSM accuracy checks on the Pitot-Static systems — including altimeters, airspeed indicators and VSI’s — and can be done at low airspeeds.
Technical Reference
Three-channel testing.
SmartProbe ready.
STATIC PORT 1 (Ps1)
Pressure Function
Range: 0.1 to 42 inHg
Resolution: 0.0001 inHg
Accuracy: ±0.002 inHg
Units: inHg mbar, psi, mmHg, kpa
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min
Altitude Function
Range: -4000 ft to 60,000 ft
Resolution: 1 ft
Accuracy: ±2 ft @ 0 ft, ±3 ft @ 10,000 ft, ±4 ft @ 20,000 ft, ±6 ft @ 35,000 ft, ±12 ft @ 50,000 ft
Units: feet, meters
Climb Function
Range: 0 ft/min to ±25,000 ft/min
Resolution: 1 ft/min
Accuracy: ±1% of rate of climb
Units: ft/min, meters/sec
PORT 2 (Ps2)
Pressure Function
Range: 0.1 to 42 inHg
Resolution: 0.0001 inHg
Accuracy: ±0.002 inHg
Units: inHg mbar, psi, mmHg, kpa
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min
Altitude Function
Range: -4000 ft to 60,000 ft
Resolution: 1 ft
Accuracy: ±2 ft @ 0 ft, ±3 ft @ 10,000 ft, ±4 ft @ 20,000 ft, ±6 ft @ 35,000 ft, ±12 ft @ 50,000 ft
Units: feet, meters
Climb Function
Range: 0 ft/min to ±25,000 ft/min
Resolution: 1 ft/min
Accuracy: ±1% of rate of climb
Units: ft/min, meters/sec
Airspeed Function
Range: 0 to 500 knots
Resolution: 0.1 knots
Accuracy: ±1.0 knots @ 20 knots, ±0.3 knots @ 50 knots, ±0.2 knots @ 100 knots, ±0.1 knots @ 200 knots, ±0.04 knots @ 500 knots
Units: knots, km/hr
Rate of change: 0 to 500 knots/min
PITOT PORT
Pressure Function
Range: 0 to 30 inHg differential
Resolution: 0.0001 inHg
Accuracy: ±0.003 inHg
Pt Units: inHg, mbar, psi, mmHg, kpa, EPR
Qc Units: inHg, mbar, psi, mmHg, kpa
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min (EPR in inHg/min)
Airspeed Function
Range: 0 to 690 knots
Resolution: 0.1 knots
Accuracy: ±1.0 knots @ 20 knots, ±0.3 knots @ 50 knots, ±0.2 knots @ 100 knots, ±0.1 knots @ 200 knots, ±0.04 knots @ 500 knots
Units: knots, Mach, km/hr, mph
Airspeed Rate
Range: 0 to 500 knots/min
Resolution: 0.1 knots/min
Accuracy: ±2% of rate
Units: knots/min, km/hr/min, mph/min
Mach Function
Range: 0.0 to 3.0 Mach
Resolution: 0.001 Mach
Accuracy: ±0.001 above 0.2 Mach
EPR Function
Range: 0.9 to 30 Mach
Resolution: 0.001 Mach
Accuracy: ±0.002 Mach
SYSTEM
Power Requirement
AC Input
90-260 VAC, 47-440 Hz, 100W (200W with heaters)
Battery
Removable battery optional: 6 to 8 hours of operation
External Interfaces
Interfaces
RS232 Serial, IEEE-488, Encoder optional
Dimensions & Weights
Main unit
22″ × 14″ × 9″ / 38 lbs
Remote unit
6″ × 6″ × 1″ / 1.8 lbs
Environmental Specs
Operating temp
0°C to 50°C, -40°C to 50°C optional
Storage temp
-40°C to 75°C
Humidity
5 to 100%
