Model 6250
2-channelsystemRVSMchecksWi-Fienabled
Target Aircraft
Light Jets
Target Application
RVSM pitot-static checks.
Description
The Model 6250 is designed to test most light jets. It is used to perform leak checks and RVSM accuracy checks on the Pitot-Static systems — including altimeters, airspeed indicators and VSI’s — and can be done at low airspeeds.

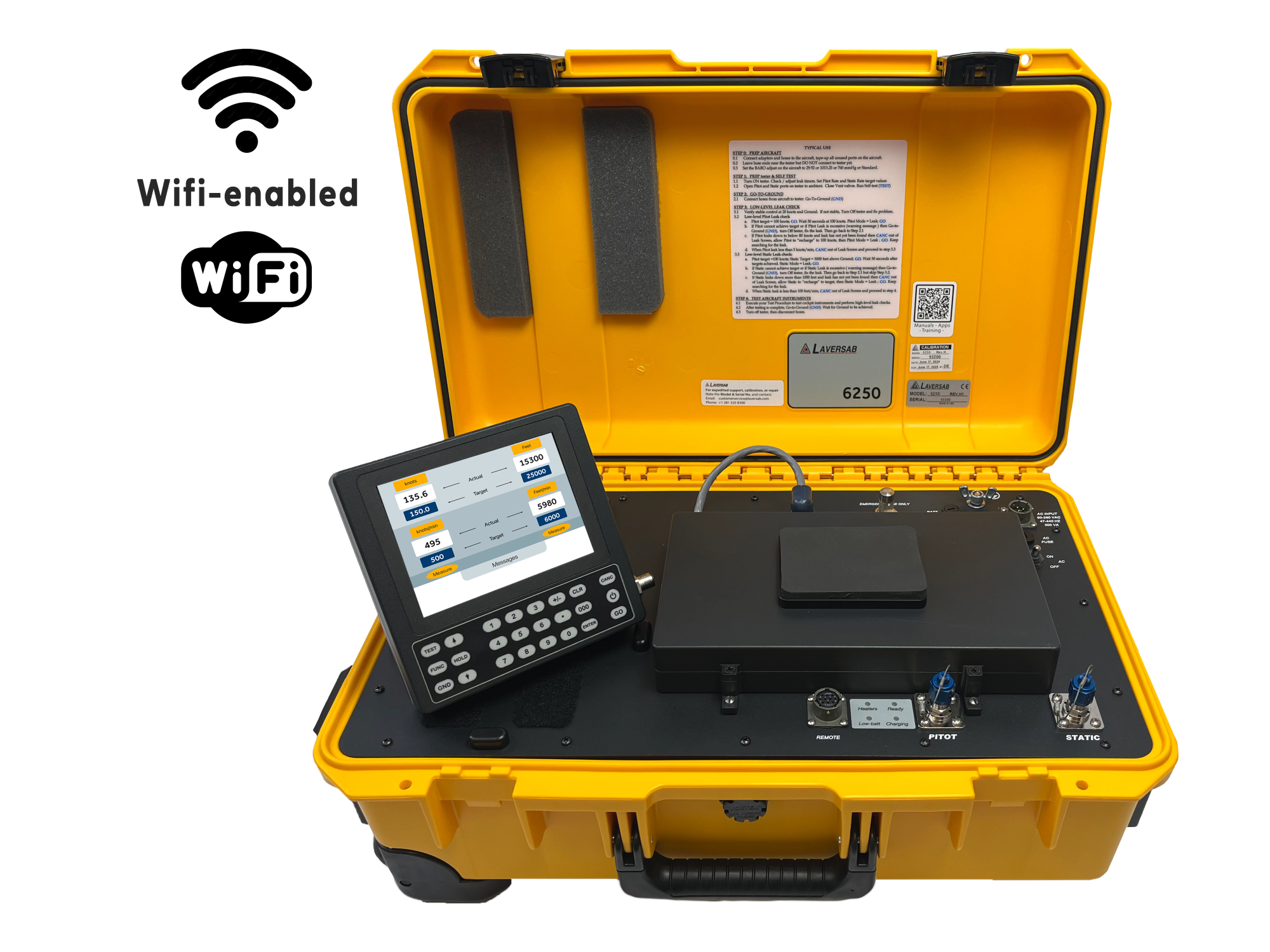

The Model 6250 includes a Remote unit with large keypad and display, a removable 8-hour battery optional, wide operating temperature optional, and profiles to accelerate testing. The unit can be controlled by an iPad or other tablets.
Technical Reference
Light jet testing.
RVSM ready.
STATIC PORT
Pressure Function
Range: 1.0 to 32 inHg
Resolution: 0.001 inHg
Accuracy: ±0.003 inHg
Units: inHg mbar, psi, mmHg, kpa
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min
Altitude Function
Range: -2000 ft to 50,000 ft
Resolution: 1 ft
Accuracy: ±3 ft @ 0 ft, ±4 ft @ 10,000 ft, ±6 ft @ 20,000 ft, ±9 ft @ 35,000 ft, ±18 ft @ 50,000 ft
Units: feet, meters
Climb Function
Range: 0 ft/min to ±10,000 ft/min
Resolution: 1 ft/min
Accuracy: ±1% of rate of climb
Units: ft/min, meters/sec
PITOT PORT
Pressure Function
Range: 0 to 15 inHg differential
Resolution: 0.001 inHg
Accuracy: ±0.003 inHg
Pt Units: inHg, mbar, psi, mmHg, kpa, EPR
Qc Units: inHg, mbar, psi, mmHg, kpa
Pressure Rate
Range: 0 to 30 inHg/min
Resolution: 0.001 inHg/min
Accuracy: ±1% of rate
Units: pressure-units/min (EPR in inHg/min)
Airspeed Function
Range: 0 to 500 knots
Resolution: 0.1 knots
Accuracy: ±1.0 knots @ 20 knots, ±0.3 knots @ 50 knots, ±0.2 knots @ 100 knots, ±0.1 knots @ 200 knots, ±0.04 knots @ 500 knots
Units: knots, Mach, km/hr, mph
Rate of change: 0 to 500 knots/min
Airspeed Rate
Range: 0 to 500 knots/min
Resolution: 0.1 knots/min
Accuracy: ±2% of rate
Units: knots/min, km/hr/sec, mph/min
Rate of change: 0 to 500 knots/min
Mach Function
Range: 0.0 to 1.0 Mach
Resolution: 0.001 Mach
Accuracy: ±0.001 above 0.2 Mach
SYSTEM
Power Requirement
AC Input
90-260 VAC, 47-440 Hz, 100W (200W with heaters)
Battery
Removable battery optional: 6 to 8 hours of operation
External Interfaces
Interfaces
Wi-Fi, RS232 Serial, Encoder optional
Dimensions & Weights
Main unit
22″ × 14″ × 9″ / 30 lbs
Remote unit
6″ × 6″ × 1″ / 1.8 lbs
Environmental Specs
Operating temp
0°C to 50°C, -40°C to 50°C optional
Storage temp
-40°C to 75°C
Humidity
5 to 100%
