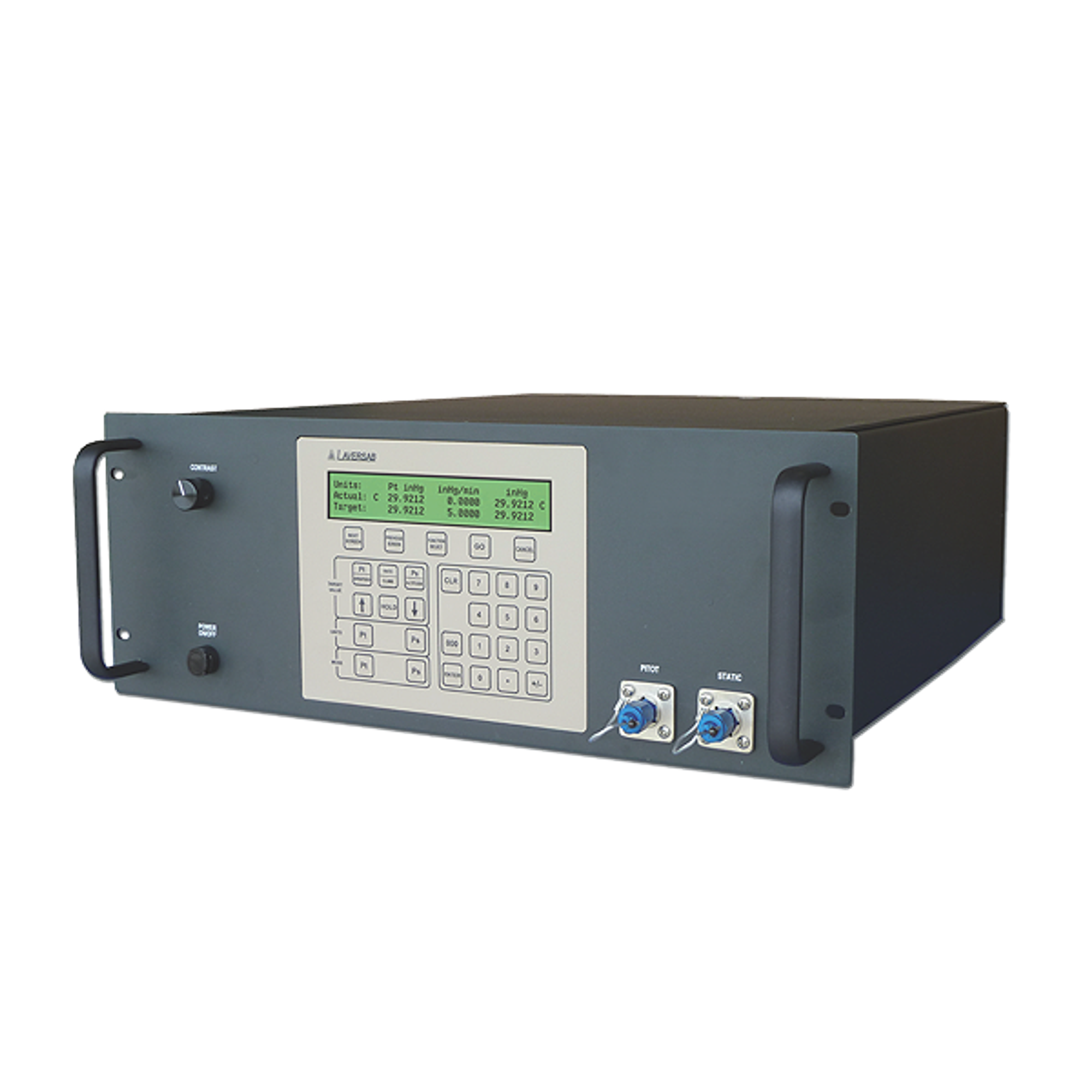

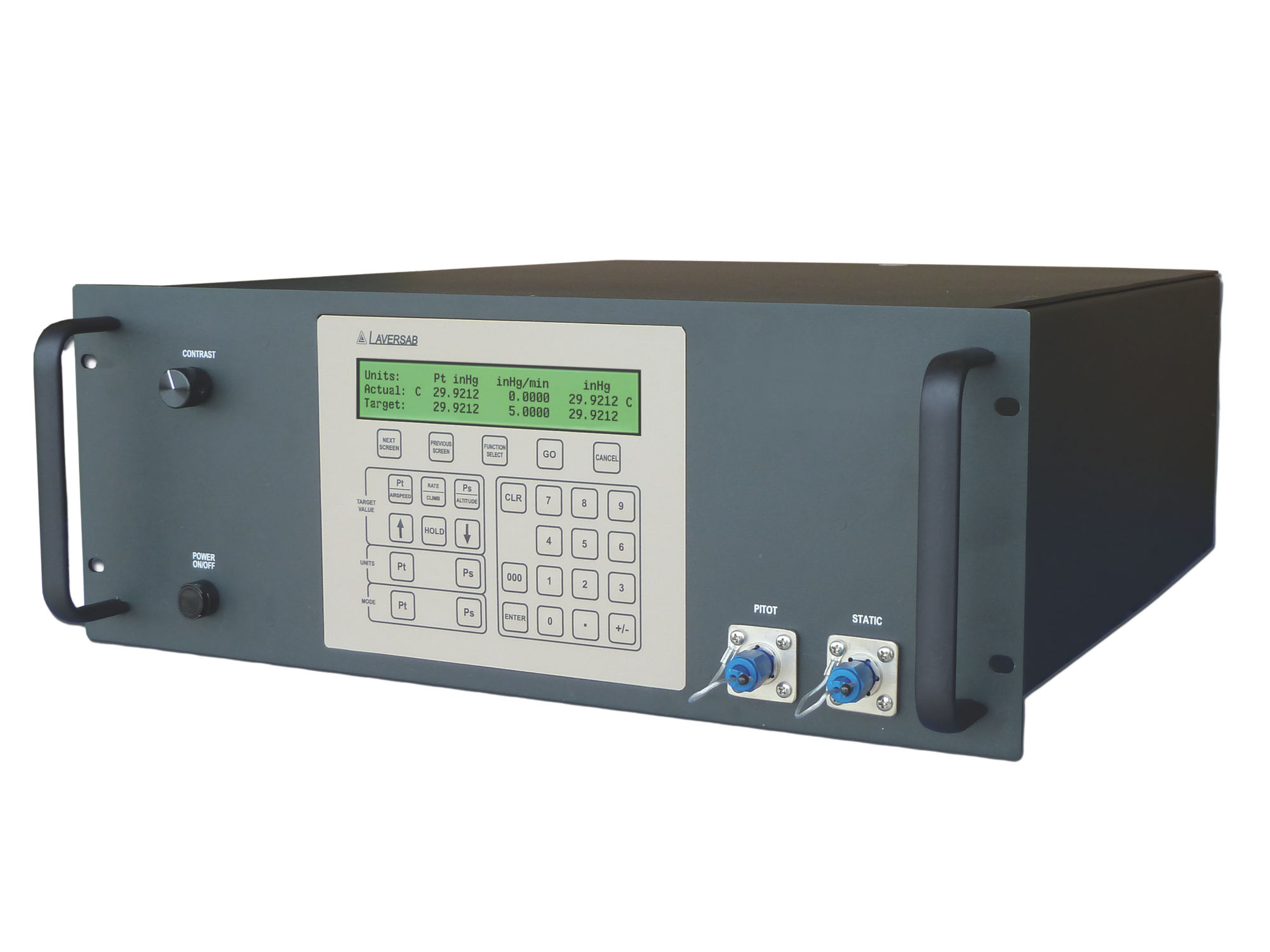

Model 6500

RVSM compliant

The high accuracy of the tester and NIST-traceable calibration make the tester fully RVSM-compliant.

Automated operation

Simply enter the target set-points for altitude and airspeed and the unit automatically achieves the targets, ramping at the programmed rates.

Control at the set-point is stable within ±1 foot, ±0.1 knot or ±0.001 inHg.

Jog and Hold features

Set-points can be jogged up or down in small increments. Ramping to a set-point can be put on hold and controlled at the current measured value.

Profiles feature

A profile of set-points can be downloaded from a PC, allowing the user to step through the set-points using a single key.

Each profile can have up to 50 set-points and 20 profiles can be stored in the unit.

Pressure & Vacuum requirement

External pressure (Dry Air only) and vacuum supplies are required.

The PVS is ideally suited for providing these supplies.

Applications

Ideal tester for use in an instrument-shop for testing and calibrating ADC’s, altimeters, airspeed indicators, VSI’s, cabin pressure controllers, FDR’s and other air-data instruments.

Can be rack-mounted in ATE systems.

Calibration period

1 year.

Programmable limits

User-programmable limits for altitude, airspeed, Mach and VSI provide protection to the aircraft.

Ground feature

Brings Pitot and Static outputs to ambient ground pressure after completing a test.

Leak checks

Pitot and Static leak-checks can be performed either independently or simultaneously.

Three leak-timers can be programmed to perform timed leaks between 1 to 20 minutes.

Local display and keypad

The local display and keypad are the operator interface for the tester.

All valid parameters, including altitude, climb and airspeed, are clearly displayed simultaneously on a single screen.
